Passenger's side

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

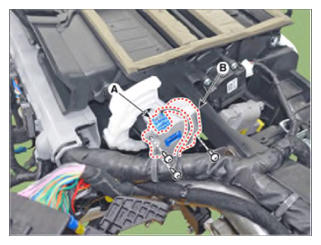

  3. Disconnect the connector (A) and then remove the passenger's mode control actuator (B) after loosening the mounting screws.
    G15555125Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
