Console Temperature Control Actuator (A)
WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
- Remove the glove box housing cover.
(Refer to Body- "GLOVE BOX HOUSING COVER ")

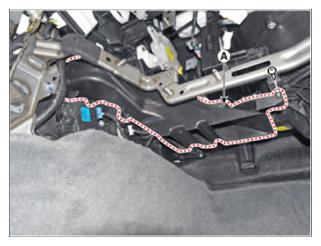

- Remove the passenger's side shower duct (A) after loosening the screw.

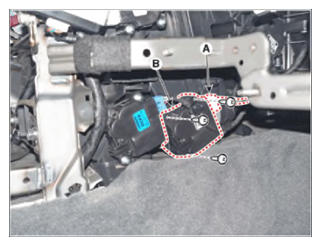

- Press the lock pin and disconnect the console temperature control actuator connector A (A), loosen the mounting screws and remove the console temperature control actuator A (B).
- Install in the reverse order of removal.
