Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body (Interior and Exterior) - "MAIN CRASH PAD ASSEMBLY ")

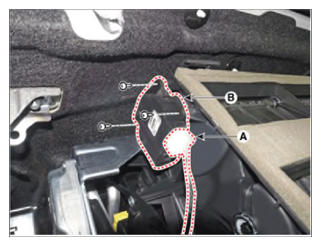

  3. Press the lock pin and disconnect the connector (A), loosen the mounting screws and remove the auto defogging actuator (B).
    G15555137Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
