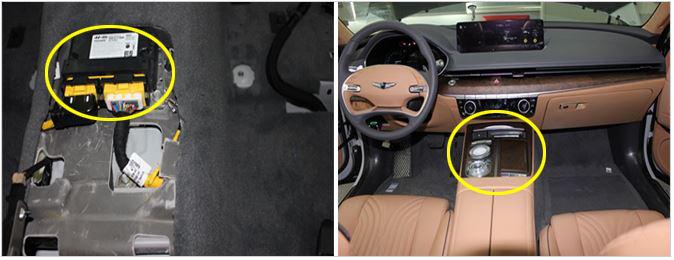

Supplemental Restraint System Control Module (SRSCM)
WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
In order to make normal activation of airbag system, SRSCM detects DTC(s) for the Occupant Classification System.
SRSCM recognizes the signal as 2 (two) different classifications; that is, 0 (Empty/Child), 1 (Seat Occupied) With these signal, SRSCM determines whether it needs to deploy PAB (Passenger Airbag) or not.
NOTE:
If any of the following conditions occur, 'Occupant Classification System (WCS, PODS, BOSE) Reset must be performed again after checking OCS Diagnostic Codes.
- OCS ECU or seat cushion assy is replaced.
- The telltale lamp is not illuminated when the passenger seat is not occupied.
- The telltale lamp is delayed more than 10 seconds to be turned off when an adult passenger seats in.
