Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
    WARNING:
    • Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the front seat assembly.

    (Refer to Body (Interior and Exterior) - "FRONT SEAT ASSEMBLY ")

  3. Remove the seat back cover.

    (Refer to Body (Interior and Exterior) - "FRONT SEAT BACK COVER ")

    NOTE:
    • When the front side airbag has deployed after a collision, replace the seat back as an assembly.

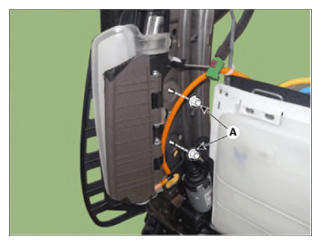

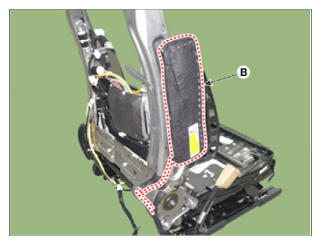

  4. Loosen the CSAB mounting nuts (A) and remove the CSAB module (B).
    G15548928Courtesy of HYUNDAI MOTOR AMERICA
    G15548929Courtesy of HYUNDAI MOTOR AMERICA
