Connector Assembly Status Test

Remove the connector (A) and reinstall it.

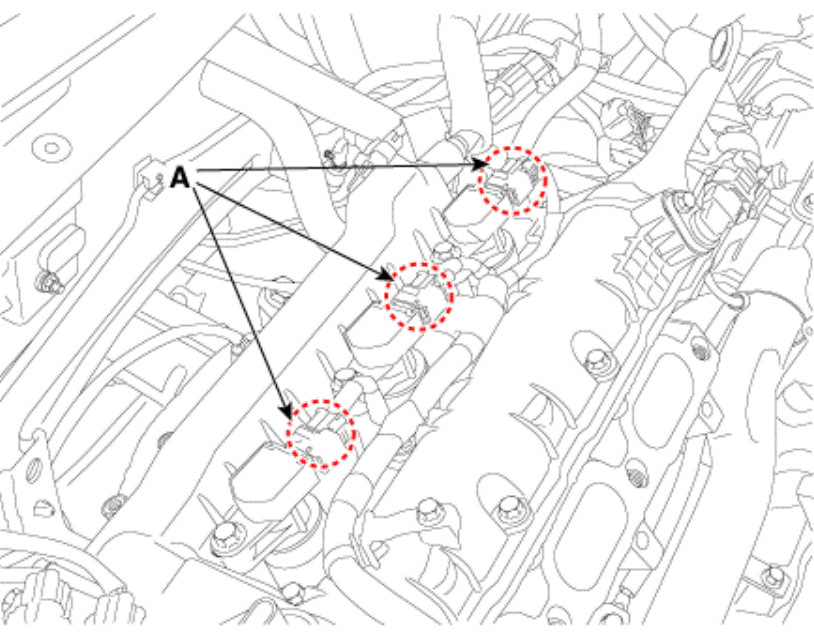

G15591306

Courtesy of HYUNDAI MOTOR AMERICA

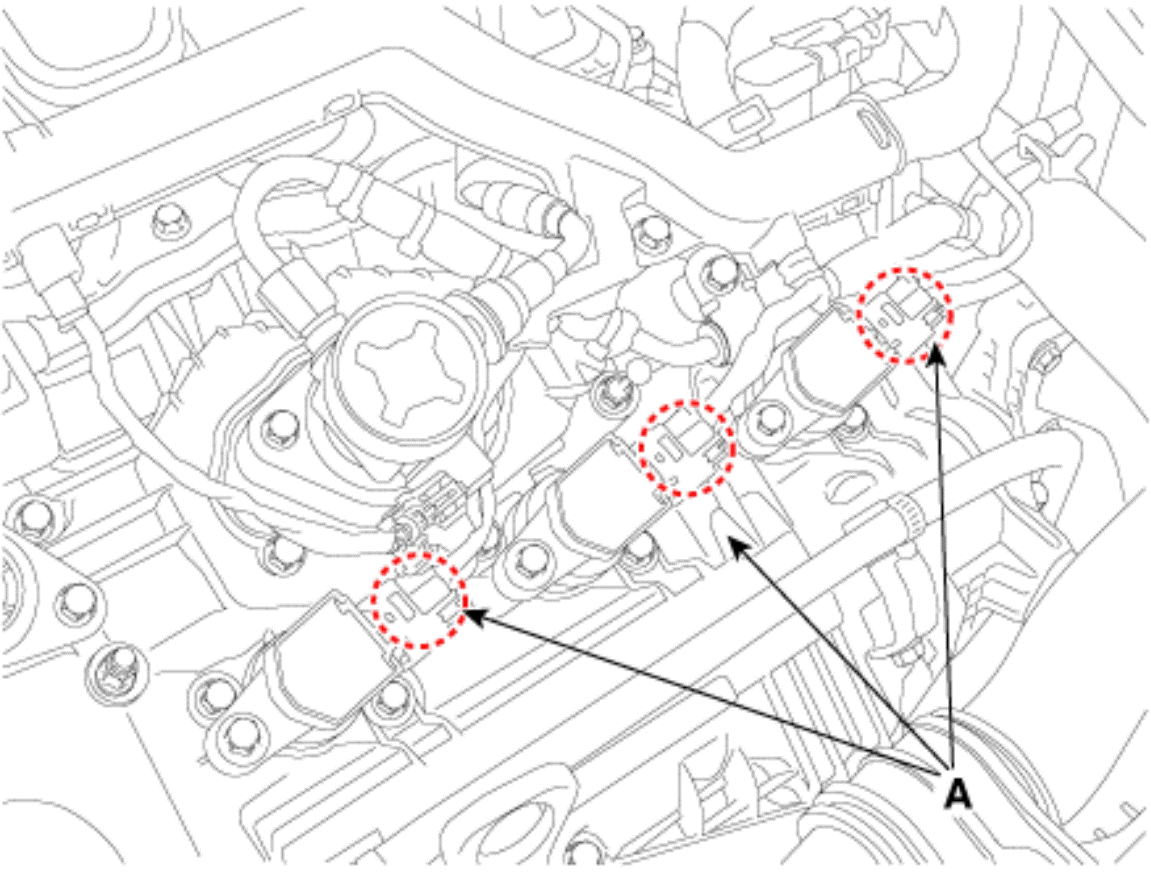

G15591307

Courtesy of HYUNDAI MOTOR AMERICA

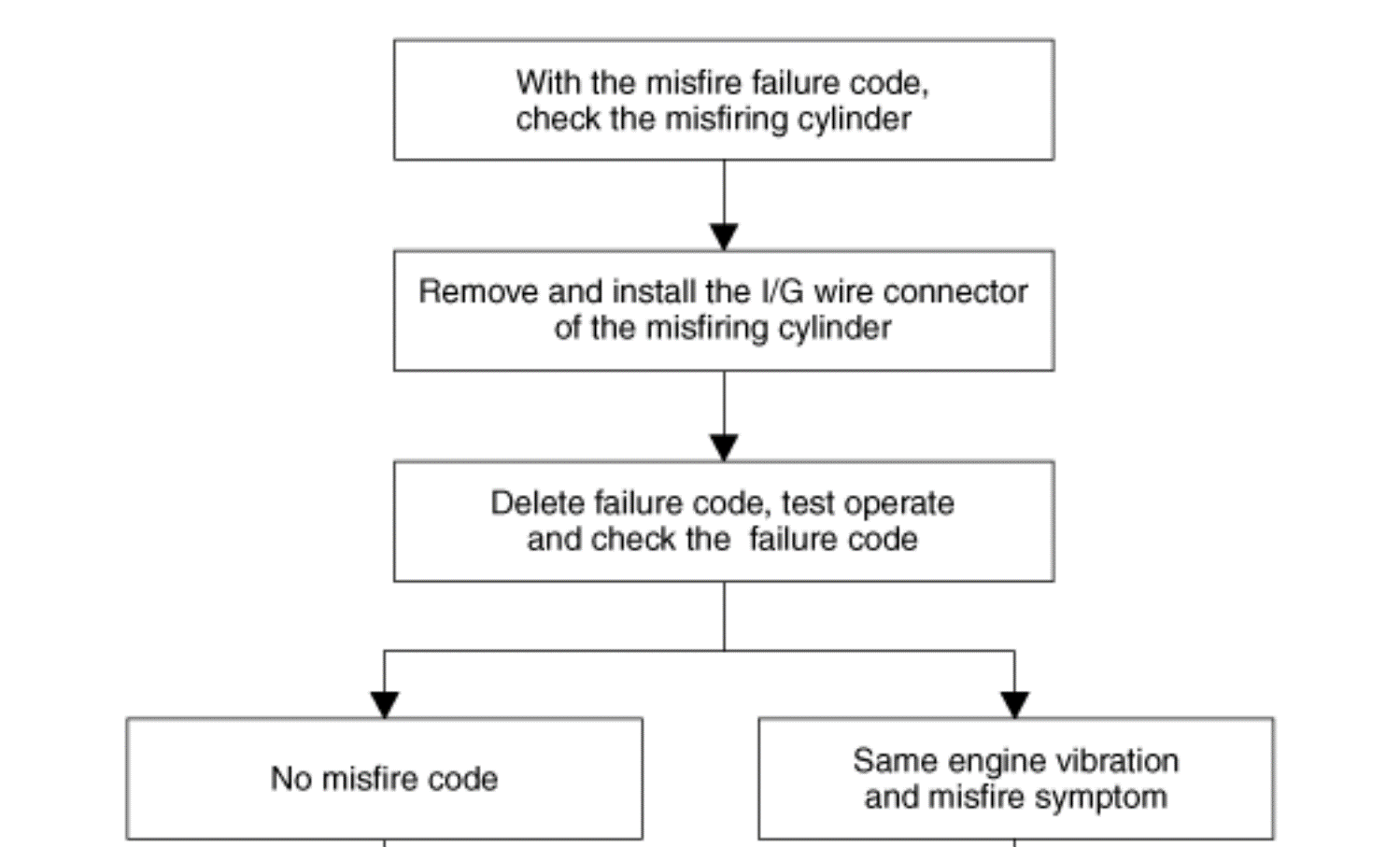

G15591308

Courtesy of HYUNDAI MOTOR AMERICA
