Charging System: Alternator

Item Specification
Rated voltage 13.5V, 180A
Speed in use 0 - 18, 000 RPM
Voltage regulator IC Regulator built in type
Default regulated voltage (V) [COM terminal] Regulator (External mode) 10.6 - 16
Regulator (Internal mode) 14.2 - 14.8
Pin 1

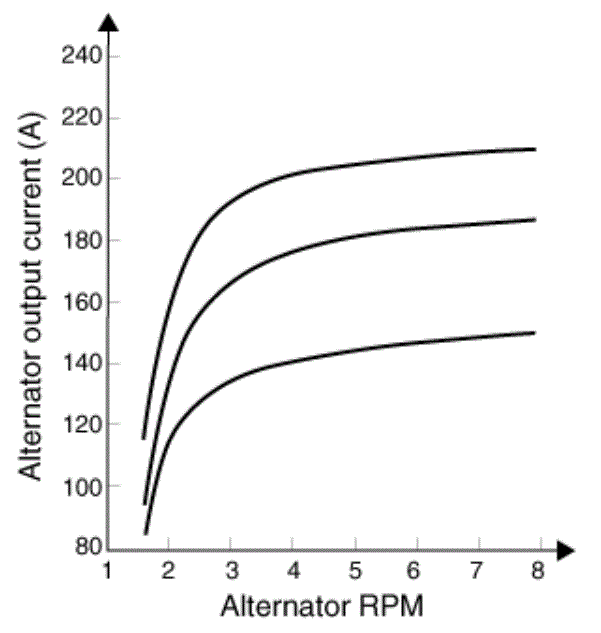

G15591223Courtesy of HYUNDAI MOTOR AMERICA
