Smart Key Status Check

  1. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel.

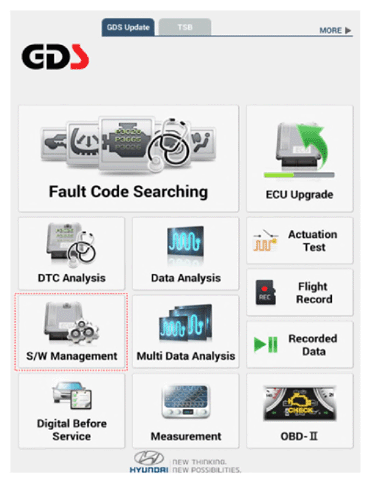

  2. Select the 'S/W Management' and 'Car model'.
    G15589790Courtesy of HYUNDAI MOTOR AMERICA

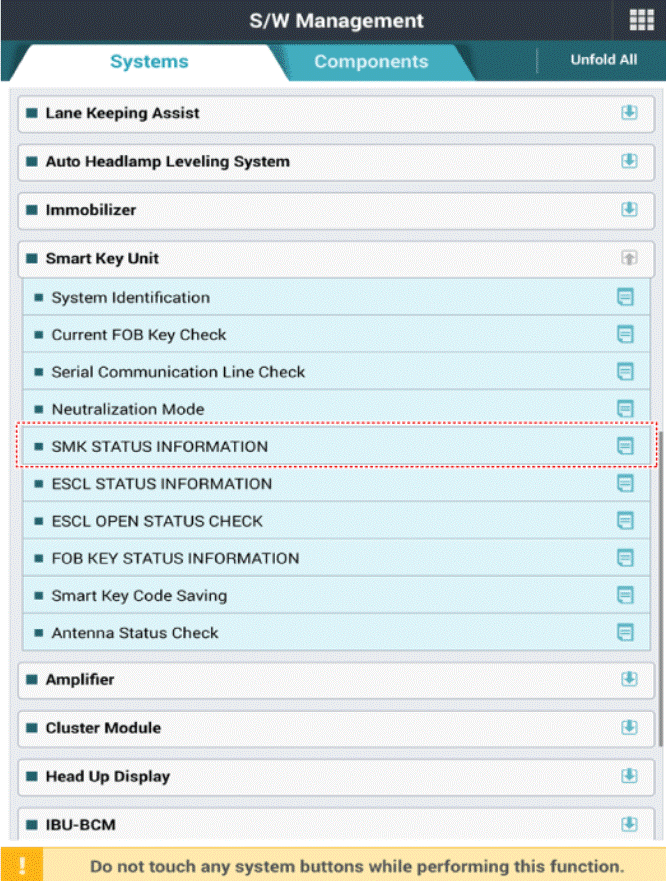

  3. Select the 'Smart Key Unit' and 'SMK STATUS INFORMATION'.
    G15589791Courtesy of HYUNDAI MOTOR AMERICA

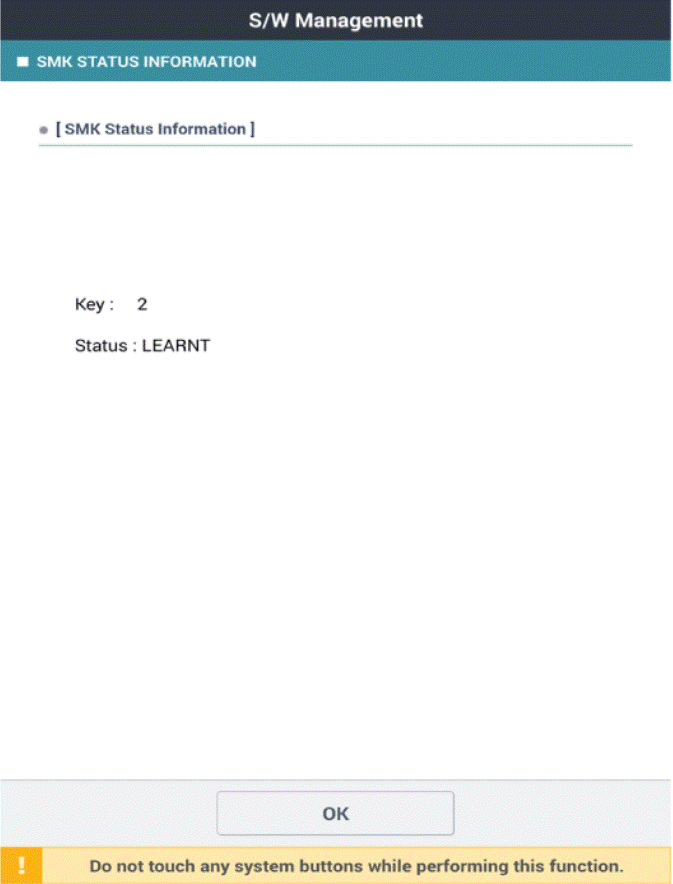

    G15589792Courtesy of HYUNDAI MOTOR AMERICA
