Neutralization Status Check

  1. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel.
  2. Select the 'S/W Management' and 'Car model'.

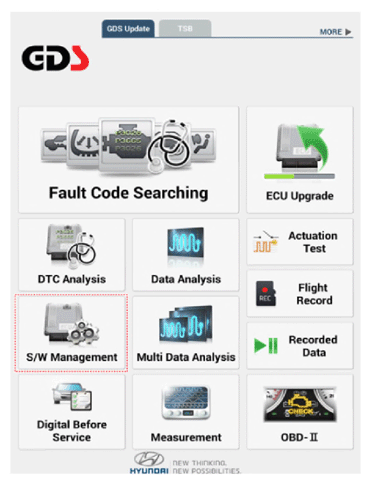

    G15589793Courtesy of HYUNDAI MOTOR AMERICA
  3. Select the 'Smart Key Unit' and 'Neutralization Mode'.

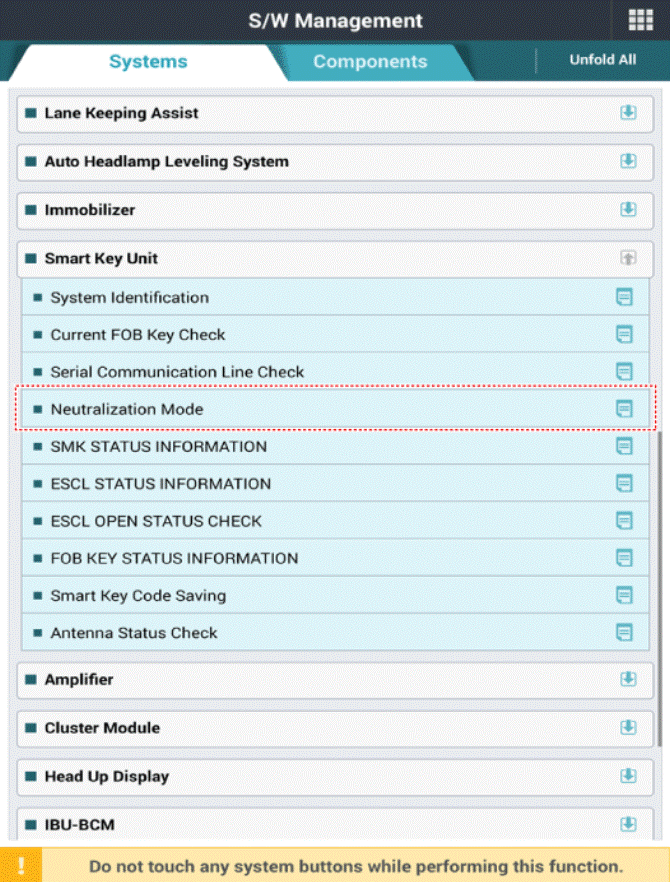

    G15589794Courtesy of HYUNDAI MOTOR AMERICA

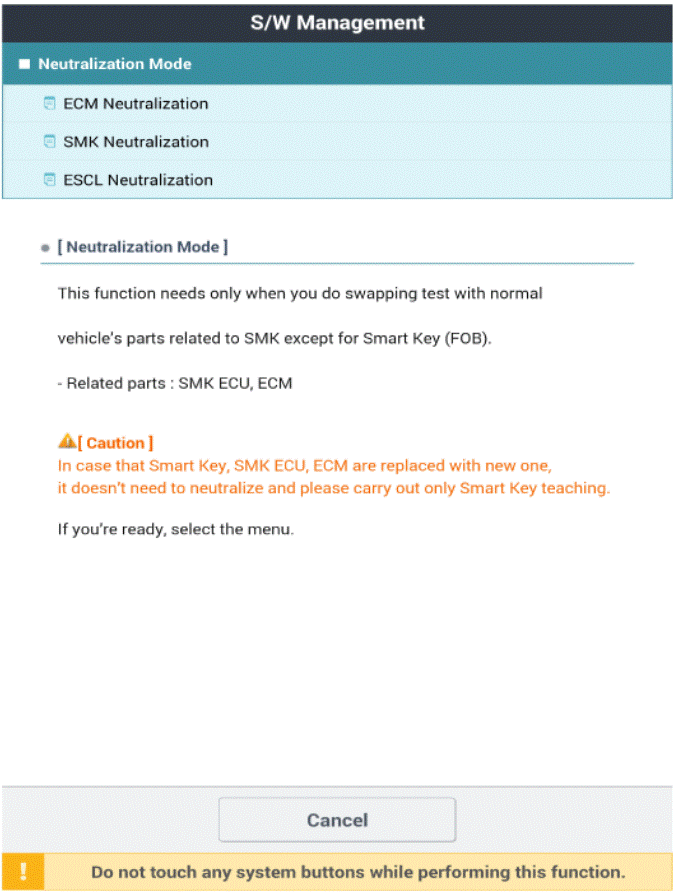

G15589795Courtesy of HYUNDAI MOTOR AMERICA
