Run Out Inspection

  1. Jack up the vehicle.

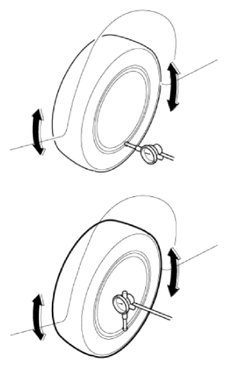

  2. Measure the wheel run-out by using a dial indicator as shown below.
    Run-out Aluminum
    Radial mm (in.) Below 0.3 (0.0118)
    Lateral mm (in.) Below 0.3 (0.0118)
  3. If measured value exceeds the standard value, replace the wheel.
    G15588642Courtesy of HYUNDAI MOTOR AMERICA
