Home >> Genesis >> 2023 >> G70 2.0T, AWD >> Repair and Diagnosis >> Steering >> Steering Column >> Steering Column Module (SCM) >> Schematic Diagrams >> Notes

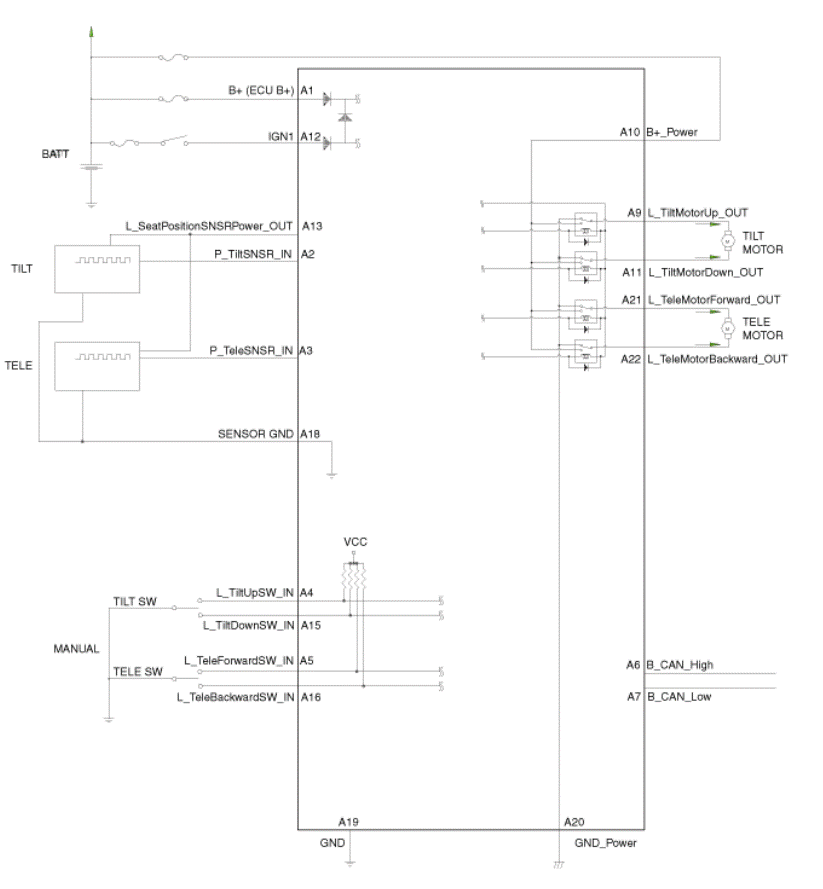

Schematic Diagrams: Notes

G15588733Courtesy of HYUNDAI MOTOR AMERICA
