Disassembly And Reassembly

Remove the front sub frame.
(Refer to Sub Frame - "Removal And Installation ")

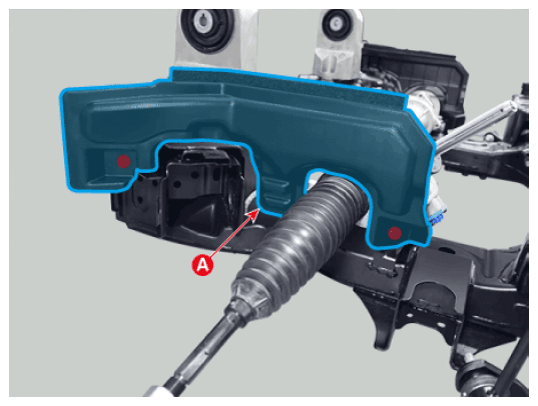

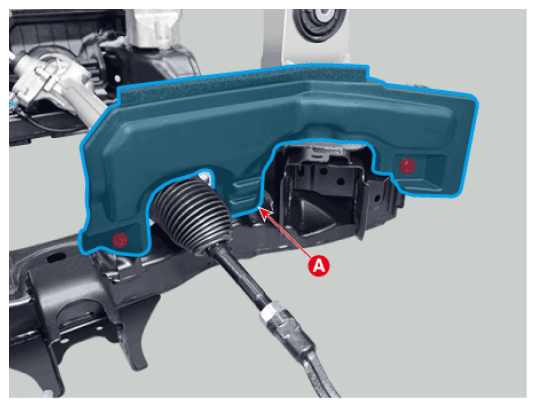

Remove the side cover (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

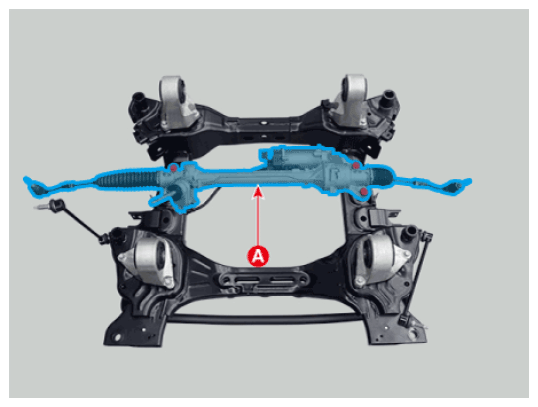

Remove the steering gear box (A) after removing the mounting bolts.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

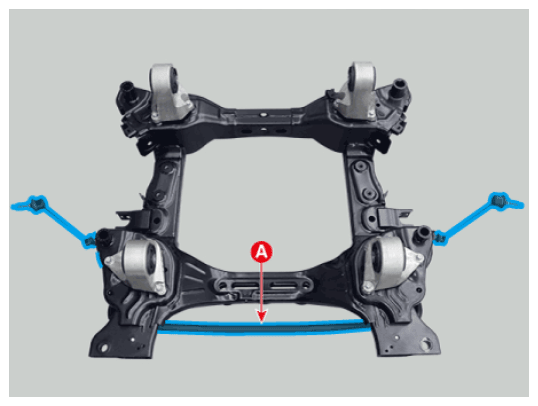

Remove the stabilizer bar (A) after removing the mounting bolts.
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

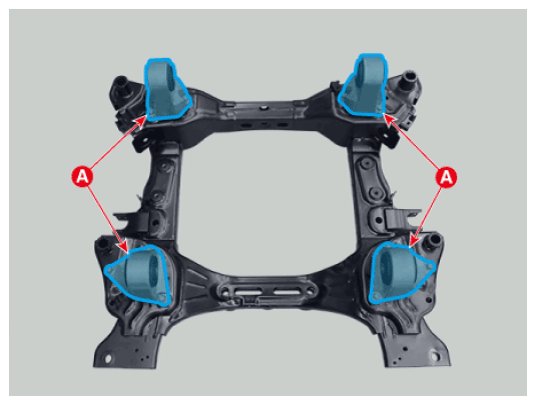

Remove the motor mounting bracket (A) after removing the mounting bolts.
Tightening torque:

53.9 - 63.7 N.m (5.0 - 6.5 kgf.m, 39.8 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To reassembly, reverse the disassembly procedures.
