Removal And Installation
- Disconnect the 12V battery negative (-) terminal.
- Loosen the front wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
CAUTION:- When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, battery)
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
- When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, battery)
- Remove the front wheel and tire.
(Refer to Tires/Wheels - "WHEEL ")
- Remove the front axle.
(Refer to Driveshaft and axle - "FRONT AXLE ASSEMBLY ")

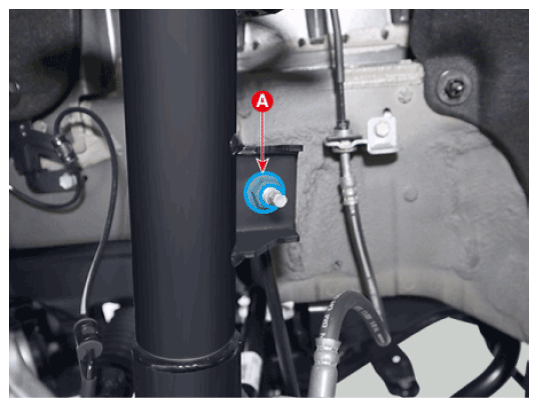

- Separate the front strut assembly and stabilizer link after removing the mounting nut (A).
Tightening torque:
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

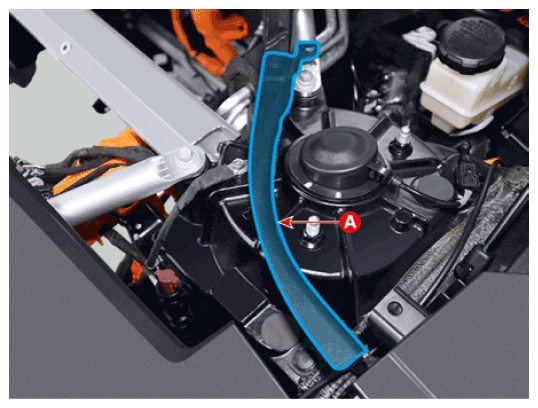

- Remove the PE module side cover (A).

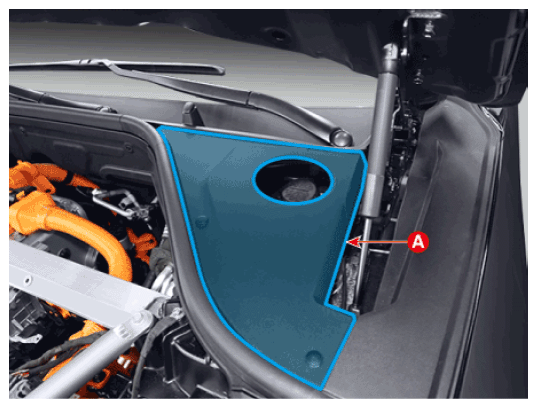

- Remove the LH side cover (A).

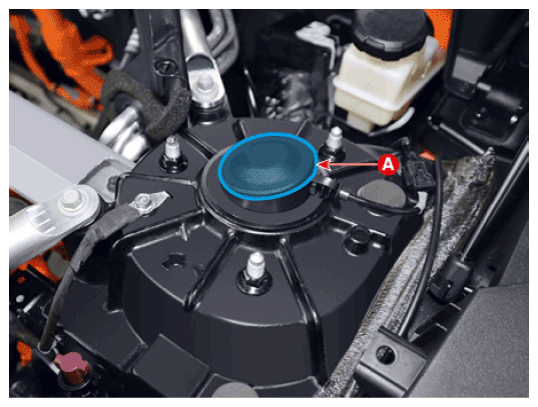

- Remove service cover (A).

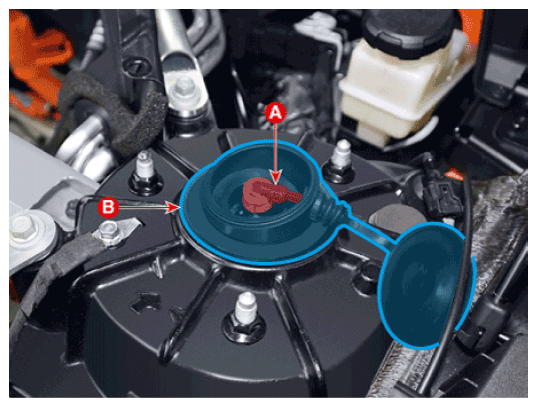

- Remove the cap (B) after disconnecting the continuously variable damping control connector (A)

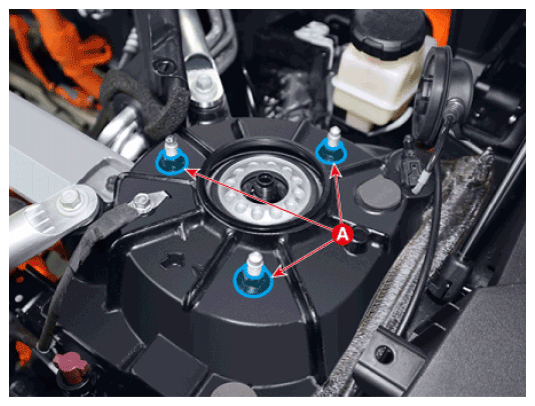

- Remove the front strut assembly after removing the front strut upper mounting nuts (A).
Tightening torque:
53.9 - 73.5 N.m (5.5 - 7.5 kgf.m, 39.8 - 54.2 lb-ft)
NOTE:- When tightening the front strut upper mounting nuts, tighten them in empty vehicle state.
- Do not reuse the mounting nut.
- Install in the reverse order of removal.
- Check the alignment.
(Refer to Tires/Wheels - "ALIGNMENT ")
