Components And Components Location: Components

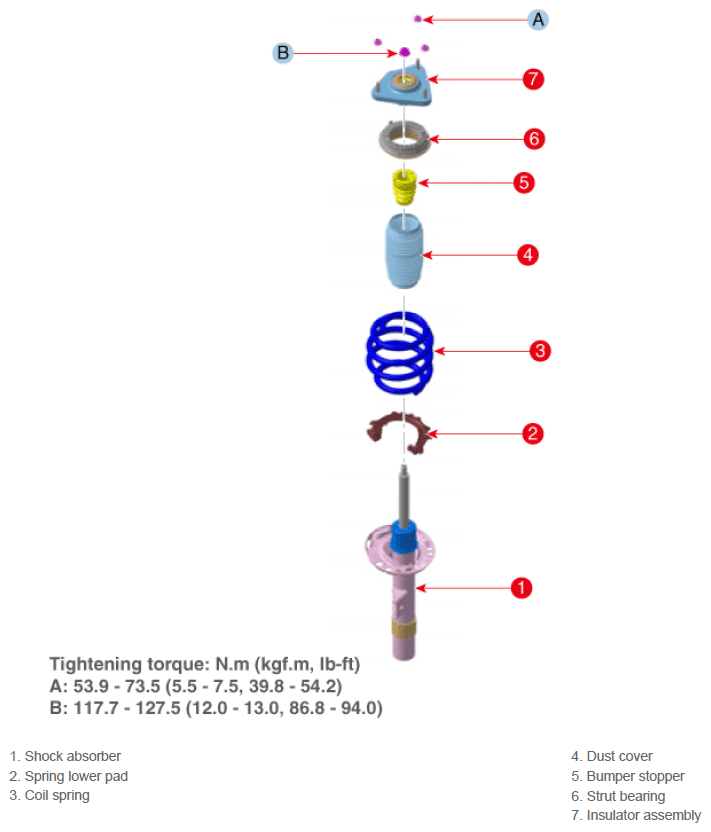

Fig 1: Front Strut Assembly Components Location With Torque Specifications

G16817662

Courtesy of HYUNDAI MOTOR AMERICA
