Removal And Installation

  1. Remove the steering wheel.

    (Refer to Steering Wheel - "REMOVAL AND INSTALLATION ")

  2. Remove the paddle shifter after removing the screws (A).

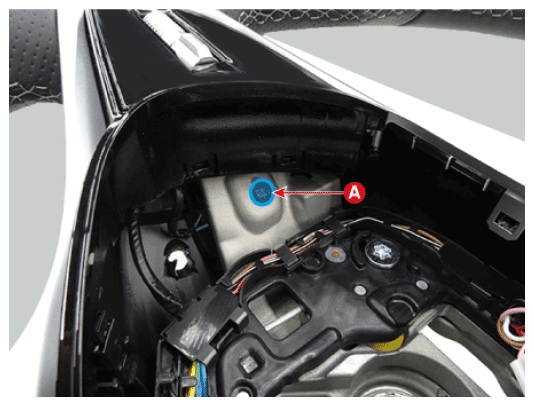

    G16817919Courtesy of HYUNDAI MOTOR AMERICA

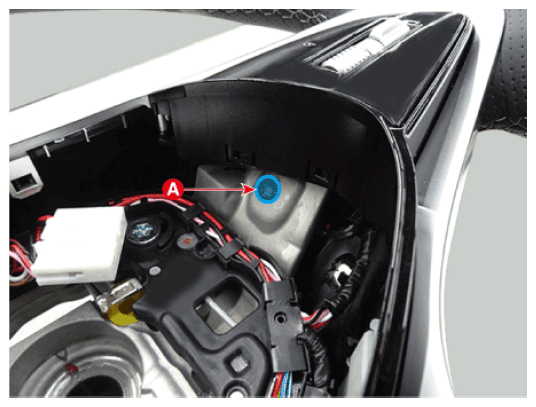

    G16817920Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the connectors and remove the paddle shifter (A).

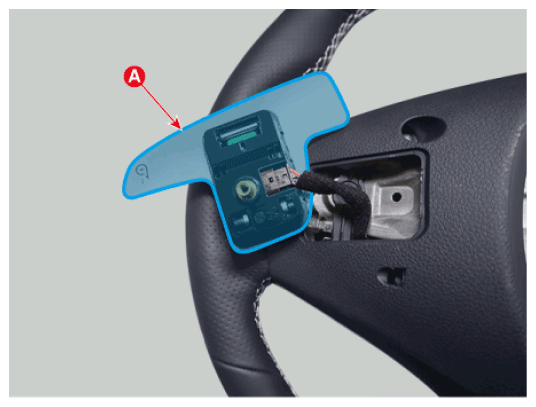

    G16817921Courtesy of HYUNDAI MOTOR AMERICA

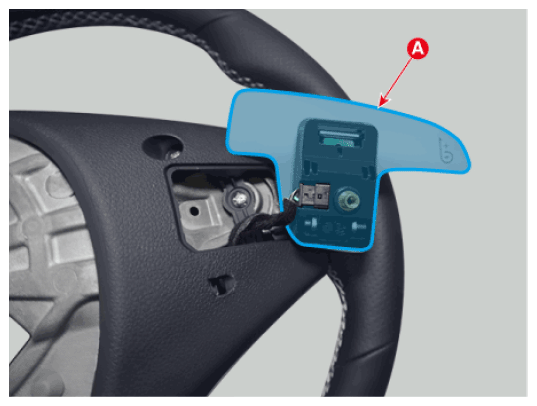

    G16817922Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
    NOTE:
    • When assembling the steering wheel, be careful not to damage the parts by tightening with excessive torque.
