Removal And Installation
- Remove the steering wheel.
(Refer to Steering Wheel - "REMOVAL AND INSTALLATION ")

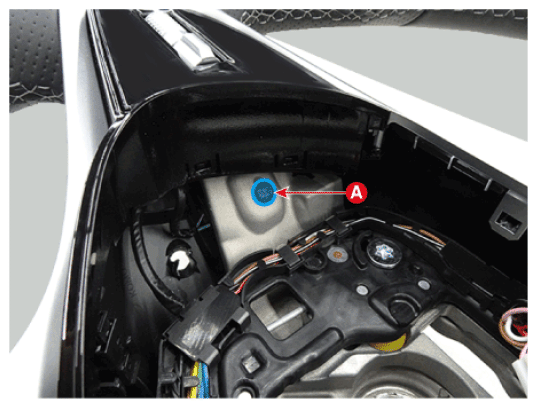

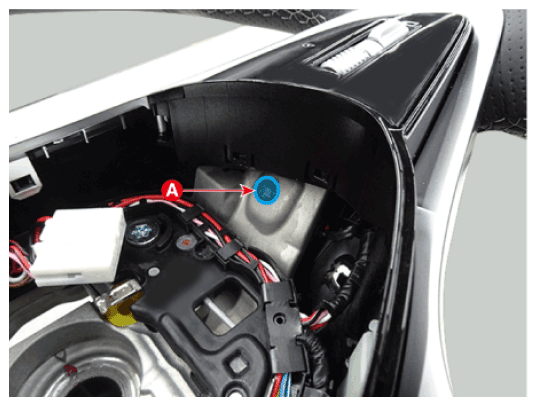

- Remove the paddle shifter after removing the screws (A).

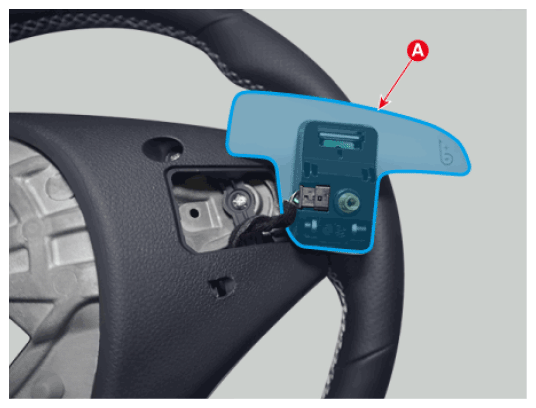

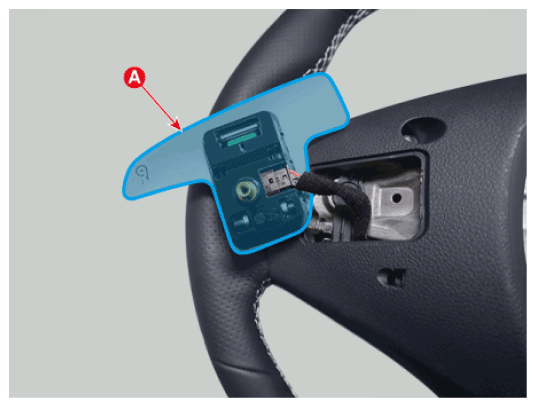

- Disconnect the connectors and remove the paddle shifter (A).

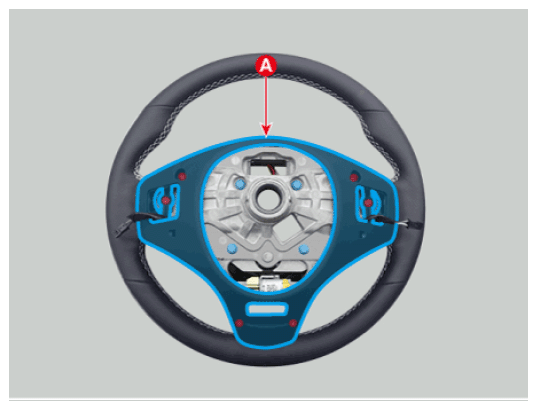

- Remove the steering wheel lower cover (A) after removing the screws.

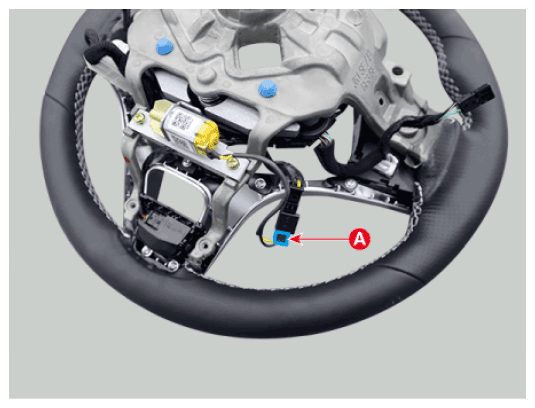

- Disconnect the haptic motor connector (A).

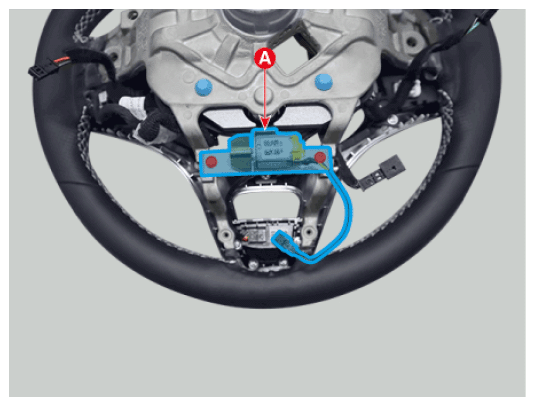

- Remove the haptic motor (A) after removing the screws.
Tightening torque:
1.1 - 2.1 N.m (0.12 - 0.22 kgf.m, 0.8 - 1.6 lb-ft)
- Install in the reverse order of removal.NOTE:
- When assembling the steering wheel, be careful not to damage the parts by tightening with excessive torque.
- Disconnection or short circuit may occur if the main wiring is not held in place when mounting the steering wheel lower cover.
