PAB On/Off: Removal
- Disconnect the battery negative (-) terminal.
- Remove the crash pad side cover [RH].
(Refer to Body (Interior/Exterior/Electrical) - "CRASH PAD SIDE COVER ")

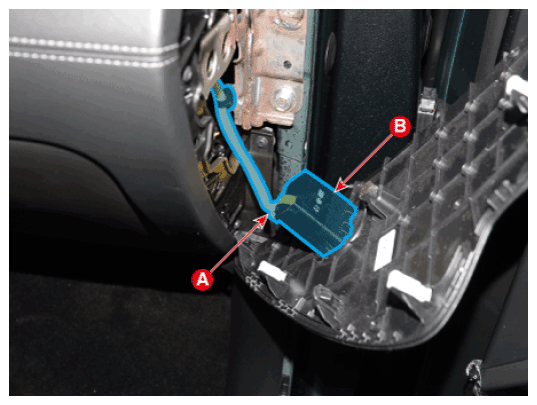

- Press the lock pin, separate the passenger air bag ON/OFF switch connector (A).
- Remove the PAB ON/OFF switch (B).
