Components And Components Location: Components

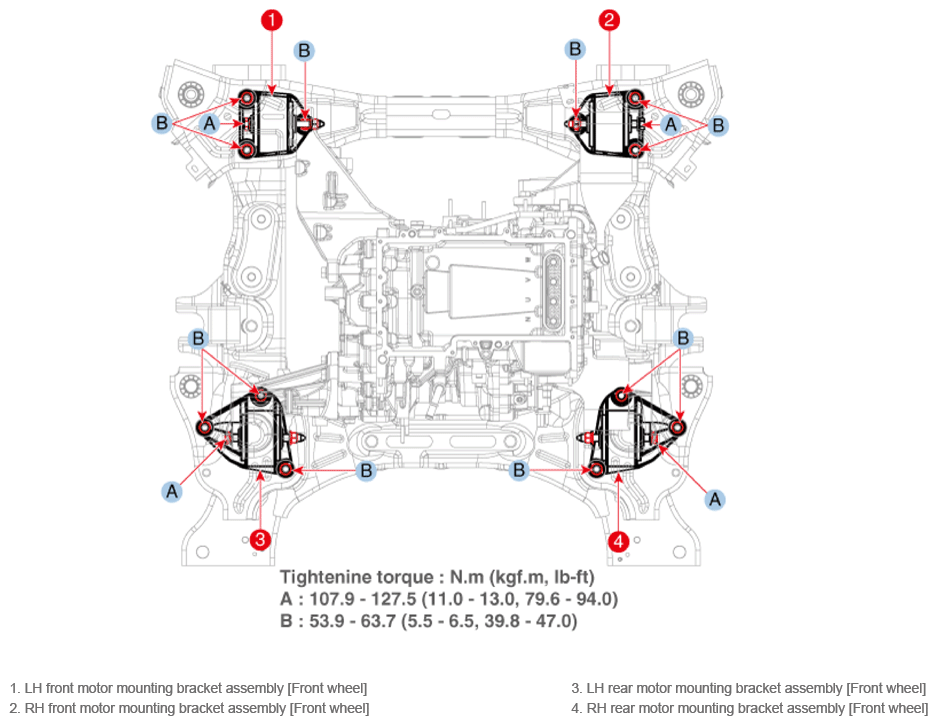

Fig 1: Front Motor And Reduction Gear Mounting Components Location With Torque Specifications

G16820508

Courtesy of HYUNDAI MOTOR AMERICA
