Home >> Genesis >> 2023 >> Electrified GV70 Advanced >> Repair and Diagnosis >> Hybrid/Electric Powertrain >> Cooling Systems >> Motor Cooling System >> 3 Way Valve >> Components And Components Location >> Components

Components And Components Location: Components

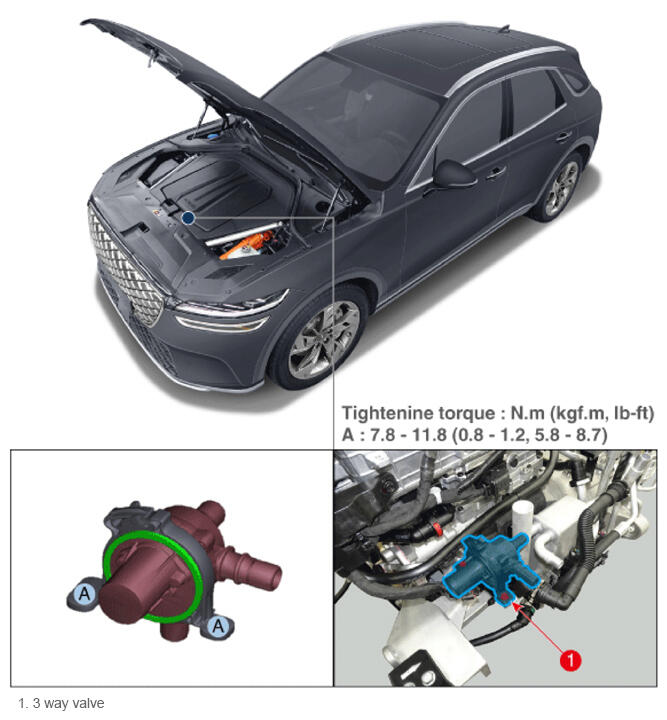

Fig 1: Motor 3 Way Valve Components Location With Torque Specifications

G16820381

Courtesy of HYUNDAI MOTOR AMERICA
