Components And Components Location: Components

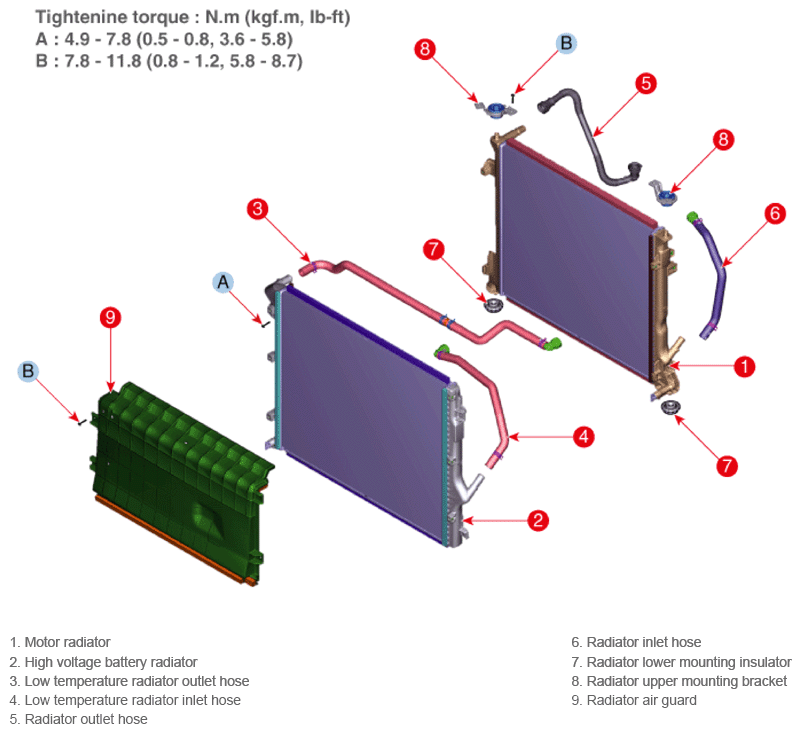

Fig 1: Radiator Components Location With Torque Specifications

G16820325

Courtesy of HYUNDAI MOTOR AMERICA
