Components And Components Location: Components

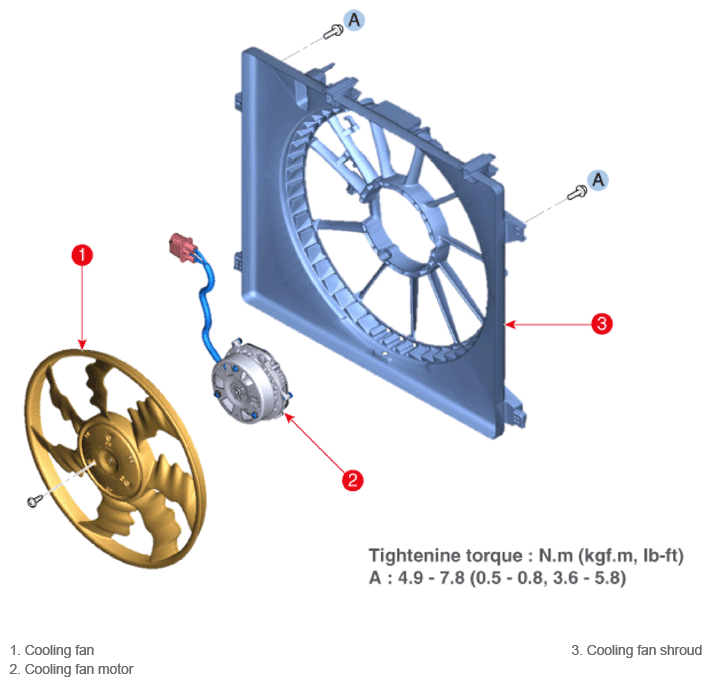

Fig 1: Cooling Fan Components Location With Torque Specifications

G16820310

Courtesy of HYUNDAI MOTOR AMERICA
