Electrified GV70 Advanced
>>
Repair and Diagnosis
>>
Body & Frame
>>
Exterior Body Panels
>>
Smart Key/Security System
>>
Fingerprint Recognition System
>>
Connector And Terminal Information
Connector And Terminal Information
Courtesy of HYUNDAI MOTOR AMERICA

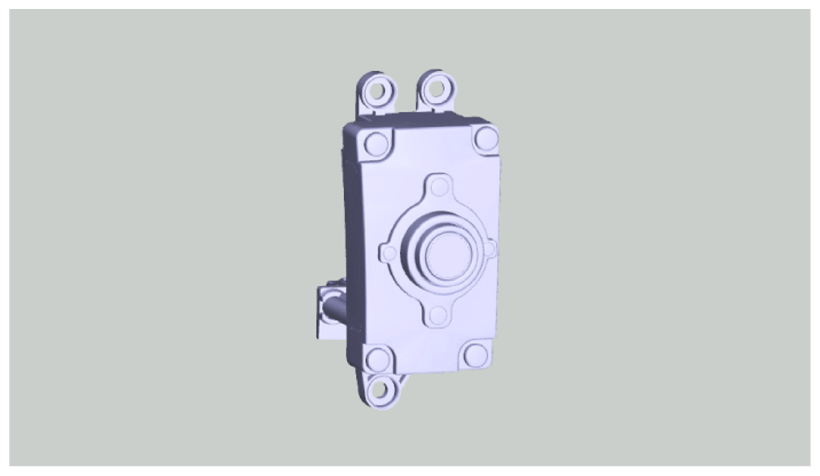

Connector
Pin NO
Function
Courtesy of HYUNDAI MOTOR AMERICA
1
Battery (+)
2
IGN 1
3
B-CAN (High)
4
B-CAN (Low)
5
-
6
Ground
