Connector And Terminal Information: Component

Courtesy of HYUNDAI MOTOR AMERICA

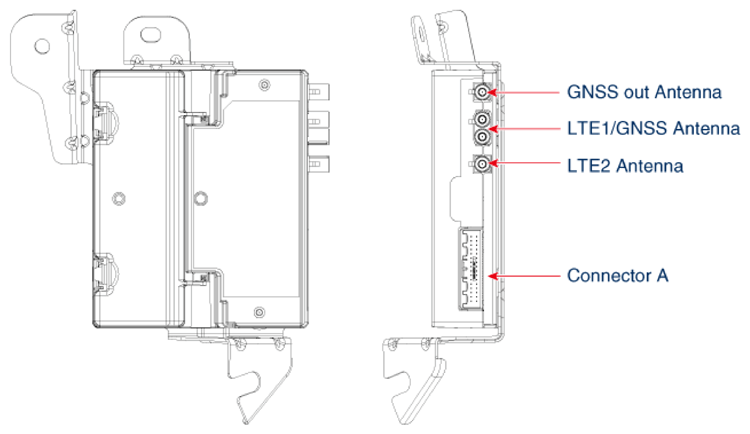

Connector A	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Battery (+)
	2	MM CAN (High)
	3	P/C/I CAN (High)
	4	-
	5	ACC
	6	Button ground
	7	LED ground
	8	LED_Red (Russia only)
	9	Mic signal (+)
	10	Mic ecall (+)
	11	Mic ground
	12	Ecall speaker (+)
	13	-
	14	-
	15	-
	16	-
	17	Airbag
	18	MM CAN (Low)
	19	P/C/I CAN (Low)
	20	-
	21	IGN 1
	22	Button
	23	Button back light
	24	LED_ Green
	25	Mic signal (-)
	26	Mic ecall (-)
	27	-
	28	Ecall speaker (-)
	29	-
	30	-
	31	-
	32	Ground

LTE2 antenna	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Signal
	2	Ground

GNSS out antenna	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Signal
	2	Ground

LTE1/GNSS in antenna	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Signal
	2	Ground
