Removal And Installation
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing using a remover, be careful not to damage the parts.
- Take care not to bend or scratch the trim and panels.
- Disconnect the battery negative (-) terminal.

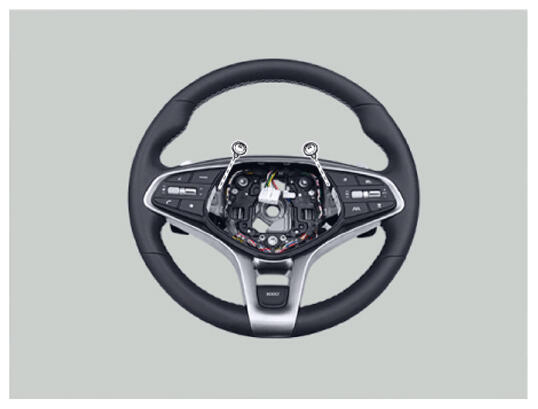

- Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")

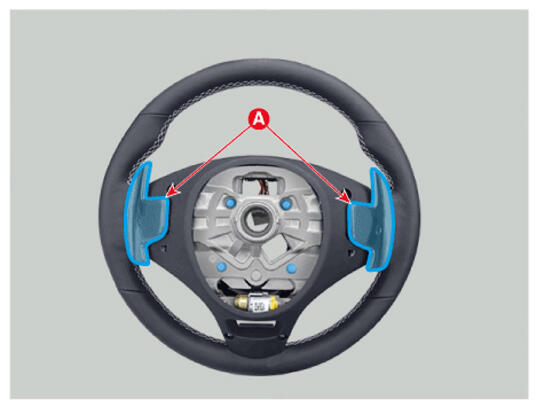

- Remove the paddle shift switch (A), after removing the screws.

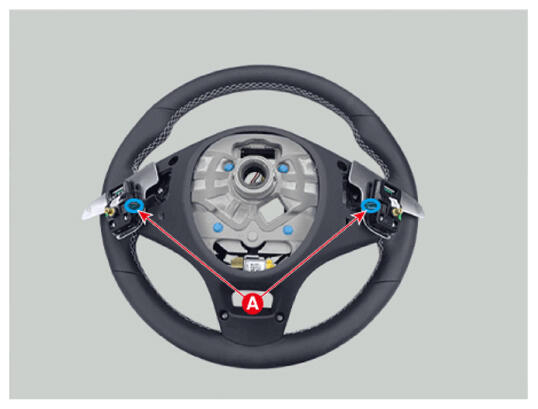

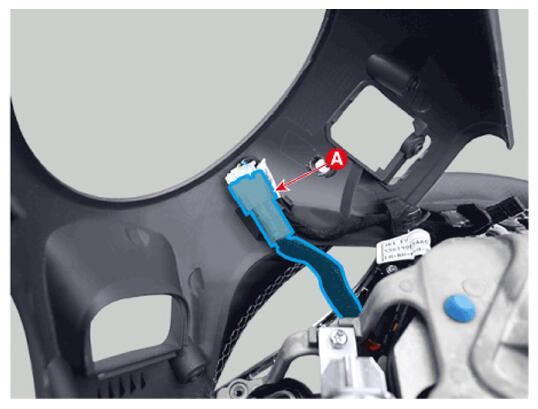

- Disconnect the paddle shift connector (A).

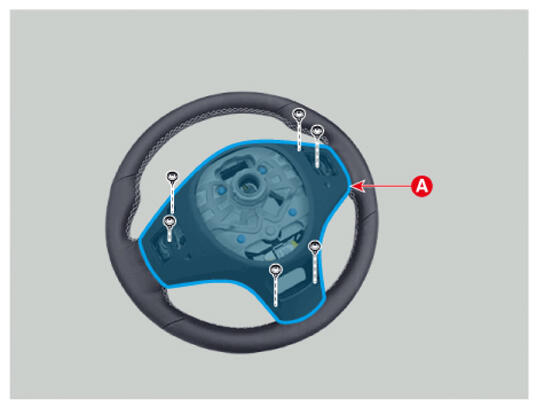

- Remove the steering lower cover (A), after removing the screws.

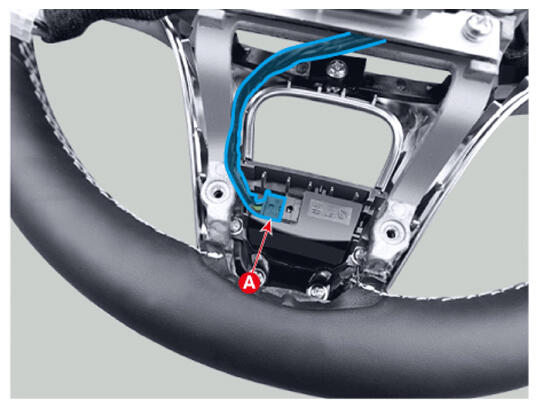

- Disconnect the heated steering wheel connector (A).

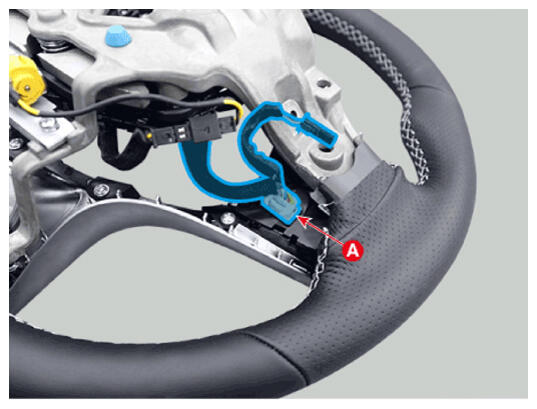

- Disconnect the boost mode switch connector (A).

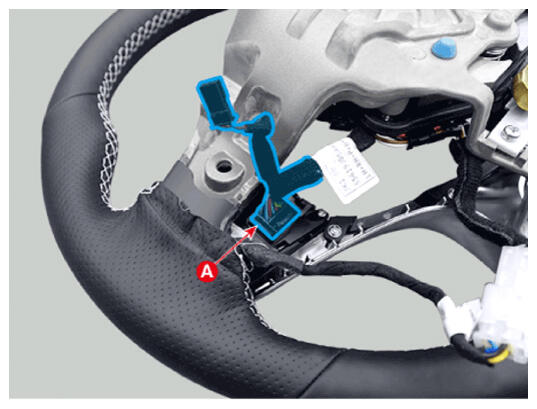

- Disconnect the steering wheel switch connector (A).
[LH]
[RH]

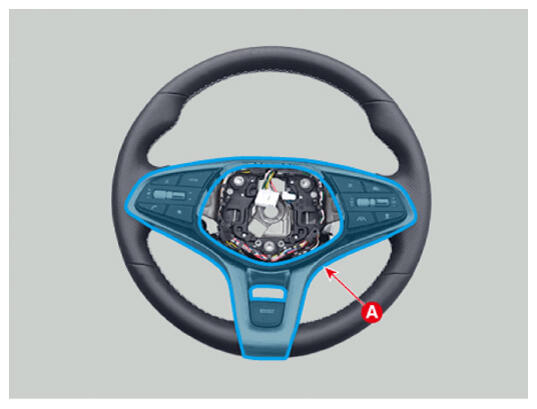

- Remove the steering wheel remote switch (A).
- Install in the reverse order of removal.
