Removal And Installation

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing using a remover, be careful not to damage the parts.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the battery negative (-) terminal.

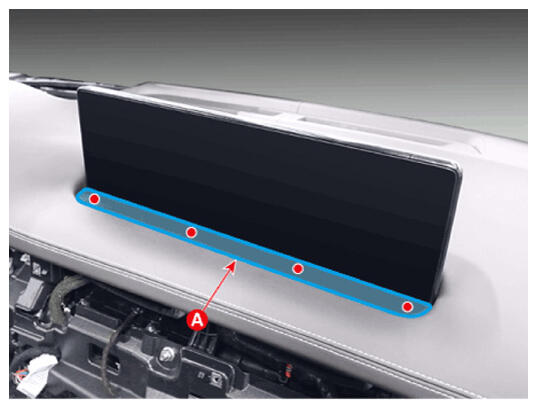

  2. Remove the crash pad upper garnish (A).
    G16820008Courtesy of HYUNDAI MOTOR AMERICA

    Information

    G16820009Courtesy of HYUNDAI MOTOR AMERICA

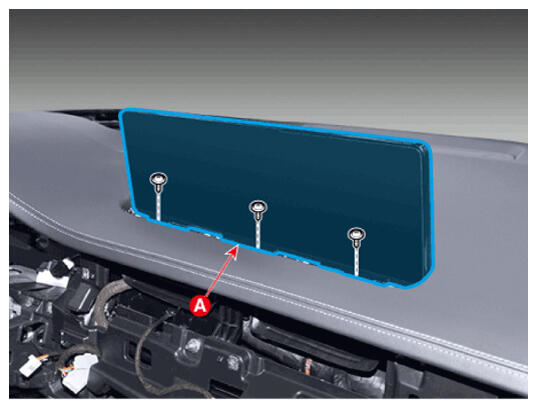

  3. Remove the front monitor (A), after removing the screws.
    G16820010Courtesy of HYUNDAI MOTOR AMERICA

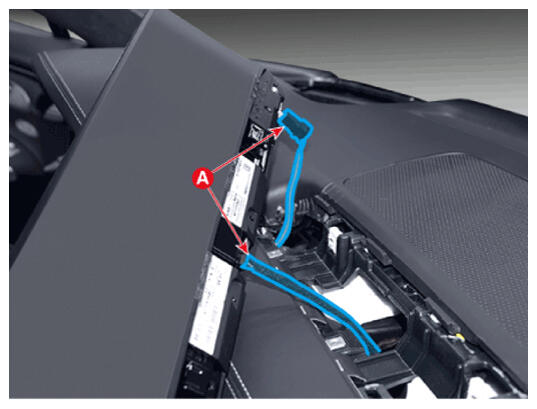

  4. Disconnect the front monitor connector (A).
    G16820011Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
