Connector And Terminal Information

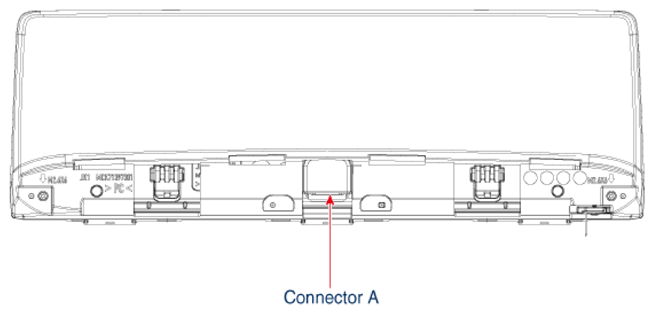

G16820006Courtesy of HYUNDAI MOTOR AMERICA
Connector A Pin NO Function
G16820007Courtesy of HYUNDAI MOTOR AMERICA
 1 Monitor power
2 -
3 -
4 Monitor ground
5 Monitor video
