Tailgate Open Switch

1. Disconnect the battery negative (-) terminal.
2. Remove the rear wiper motor.

   (Refer to Exterior Green House - "WIPER MOTOR ")

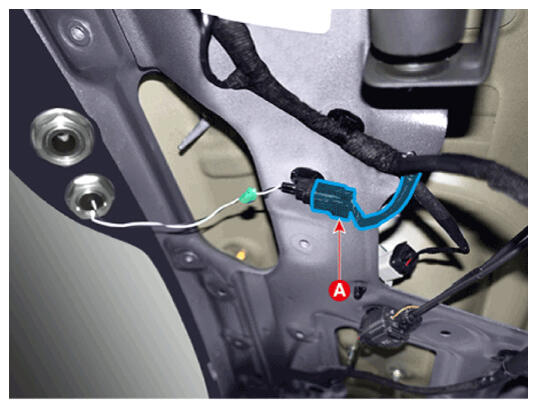

3. Disconnect the tailgate outer switch connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

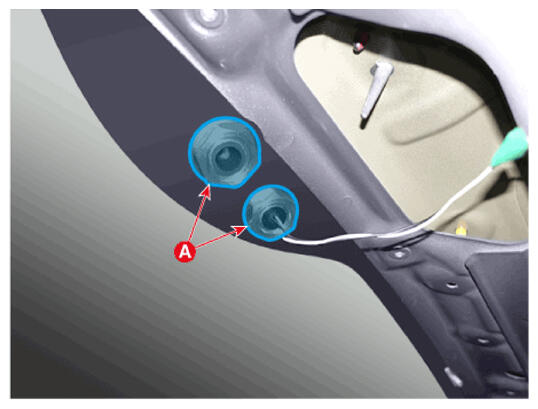

4. Remove the tailgate outer switch mounting nuts (A).

   Courtesy of HYUNDAI MOTOR AMERICA

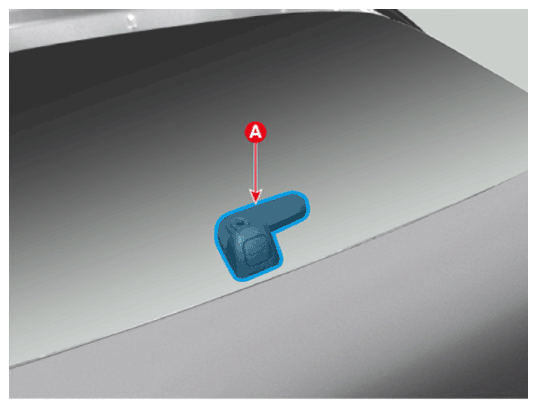

5. Remove the tailgate outer switch (A).

   Courtesy of HYUNDAI MOTOR AMERICA

6. Install in the reverse order of removal.

Information

• Make sure the connector is connected properly.
