IAU Learning Status Inspection
Information
- Digital key function works only when the learning states of IAU and IBU are learnt.
- You can confirm the learning status as shown below.
- Connect the cable of diagnostic tools to the data link connector in driver side crash pad lower panel.

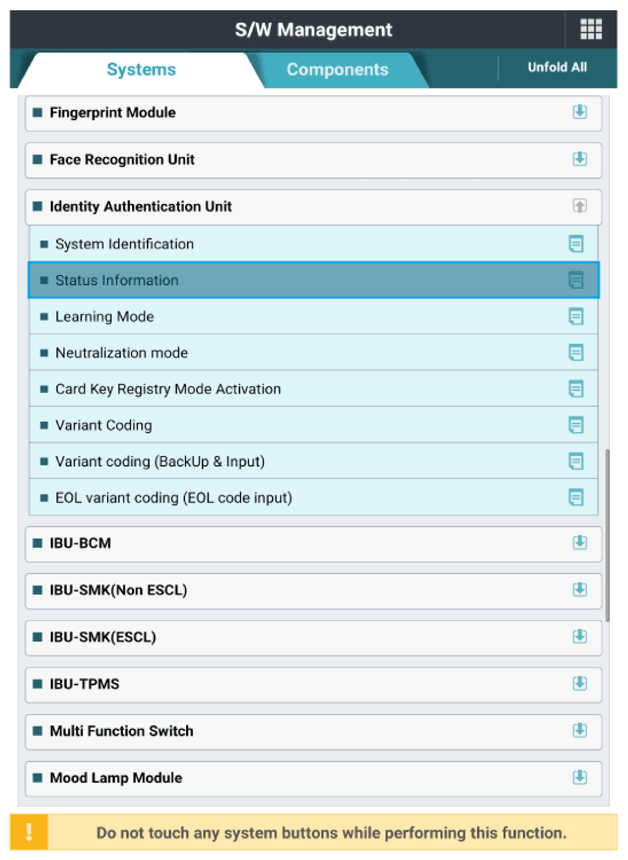

- Select the "S/W Management" and "IAU-IBU learning status".

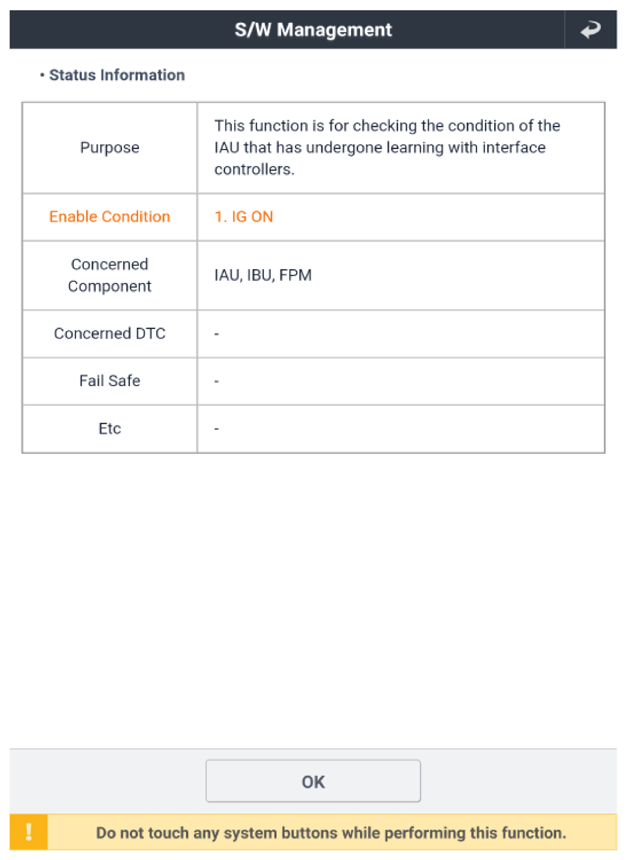

- Check the IAU learning status.
| Mark | Description | Learning status |
|---|---|---|
| Virgin | Initial state | Non-learning state |
| Learnt | Learning completion state | Learning completion state |
| Neutralized | Neutral state | Non-learning state |
