Removal And Installation

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing using a remover, be careful not to damage the parts.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the battery negative (-) terminal.
  2. Remove the crash pad garnish [RH].

    (Refer to Crash Pad - "CRASH PAD GARNISH ")

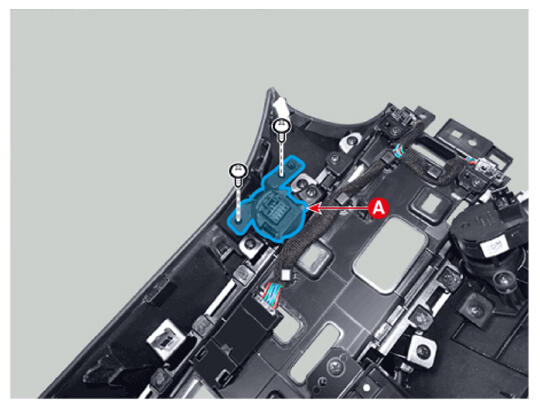

  3. Remove the SSB (A), after removing the screws.
    G16820152Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
