Front Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

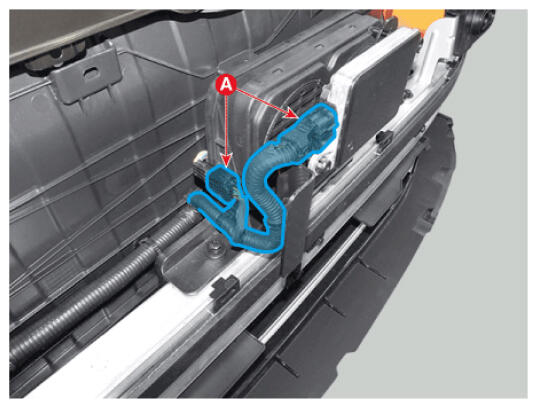

  3. Disconnect the vess and front radar connector (A).
    G16872615Courtesy of HYUNDAI MOTOR AMERICA

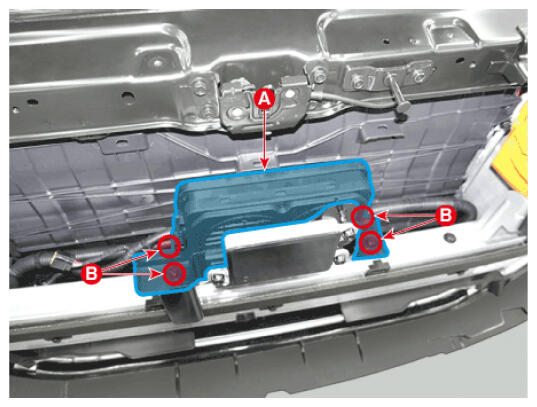

  4. Loosen the mounting bolts (B) and remove the vess speaker (A).
    G16872616Courtesy of HYUNDAI MOTOR AMERICA

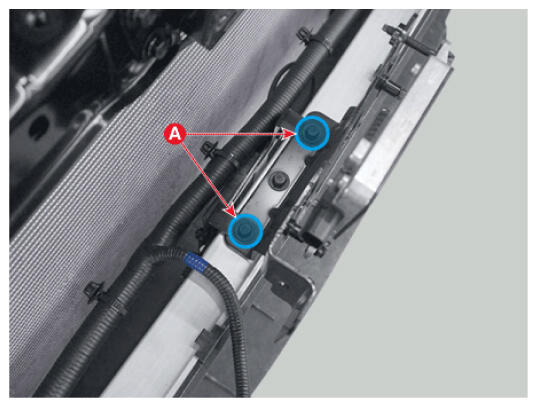

  5. Loosen the mounting bolts (A) and remove the front antenna bracket from the front bumper beam.
    G16872617Courtesy of HYUNDAI MOTOR AMERICA

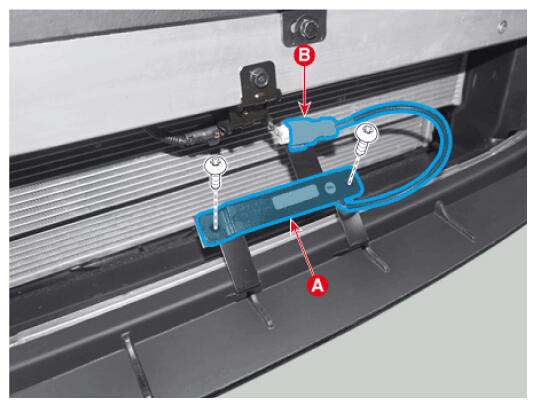

  6. Remove the front antenna (A) after loosening the mounting nuts and disconnecting the connector (B).
G16872618Courtesy of HYUNDAI MOTOR AMERICA
