Power Trunk Lid Drive Unit: Removal
CAUTION:
- Put on gloves before removing/installing the drive unit.
- Do not install or carry a push rod, controller and wire harnesses by holding it with bare hands.
- Be careful when removing the push rod, the trunk may close.
- Disconnect the negative (-) battery terminal.
- Remove the luggage side trim [LH].
(Refer to Body - "LUGGAGE SIDE TRIM ")

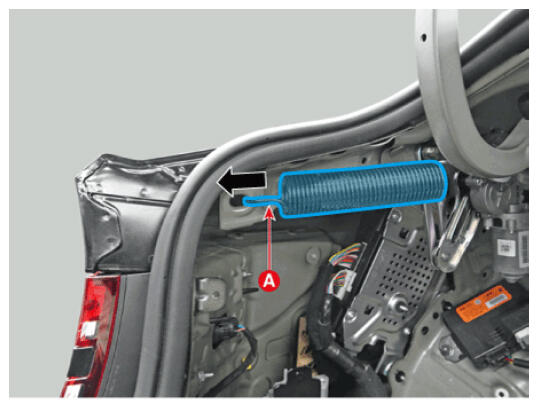

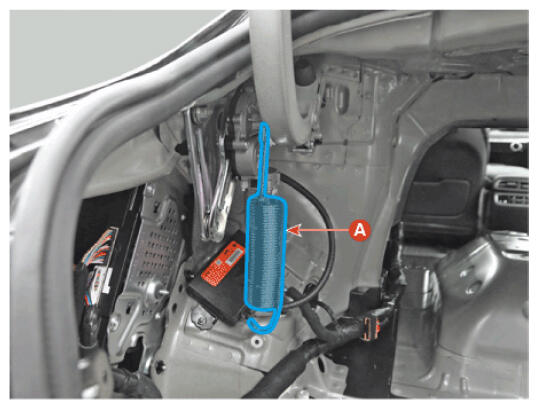

- Remove the spring (A).

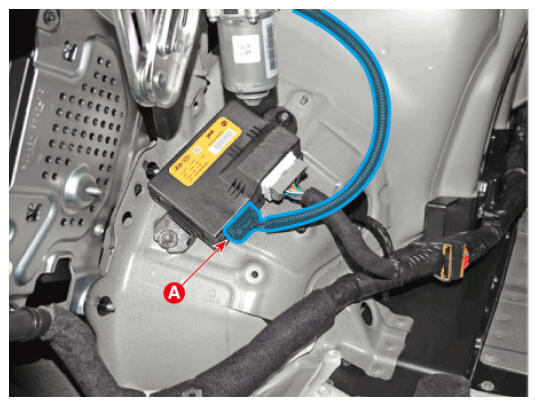

- Disconnect the power trunk Lid control unit connector (A).

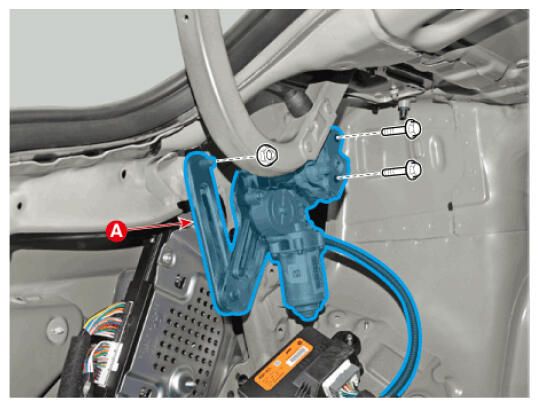

- Remove the power trunk Lid control unit (A) after loosening the mounting nut and bolts
