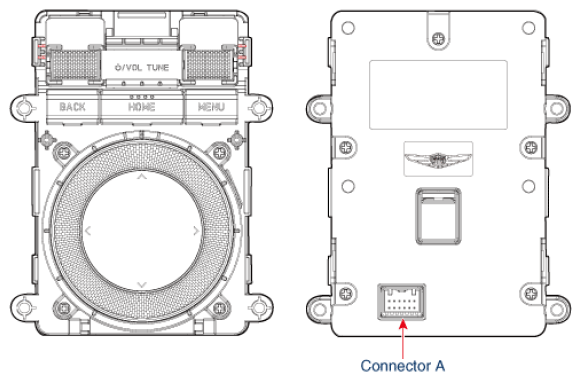

Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

Connector A	NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Ground
	2	ILM (-)
	3	-
	4	ILL (+)
	5	ACC
	6	-
	7	-
	8	-
	9	Battery (+)
	10	-
	11	Local_HS CAN (High)
	12	Local_HS CAN (Low)
