Front View Camera: Installation
CAUTION:
(Refer to Front View Camera System - "ADJUSTMENT ")
- Perform the camera calibration in the following case.
(Refer to Front View Camera System - "ADJUSTMENT ")
- If the front view camera is replaced with a new one.
- If the windshield glass is changed.
- When a failure code (System Out of Calibration) occur.
- If the front view camera is removed and mounted.
- If the front view camera coupler of the windshield glass is deformed.

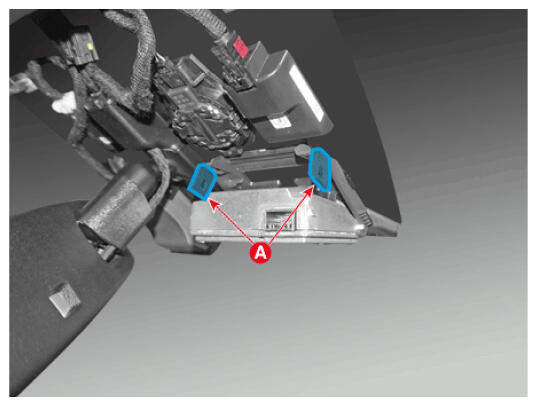

- Align the reference point at the wind shield bracket alignment point (A) and align the front camera.

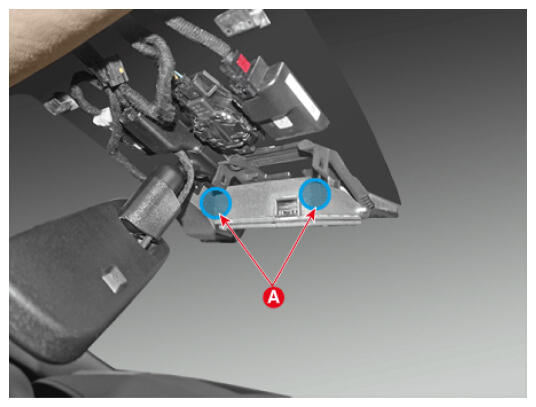

- Apply force to the locking position (A) to complete the installation.NOTE:
- When assembling, mount it firmly until you hear a sound.
- Install the rain sensor cover and front view camera cover.
- Connect the negative (-) battery terminal.
- When the front camera is replaced with a new one, perform the variant coding and service point target auto calibration (SPTAC).
(Refer to Front View Camera System - "ADJUSTMENT ")
