Liftgate upper trim

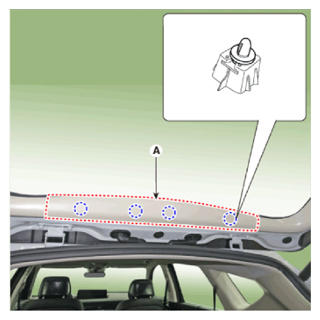

  1. Using a screwdriver or remover, remove the liftgate upper trim (A).
    G14723134Courtesy of HYUNDAI MOTOR AMERICA
  2. To install, reverse removal procedure.

    Information

    • Replace any damaged clips.
