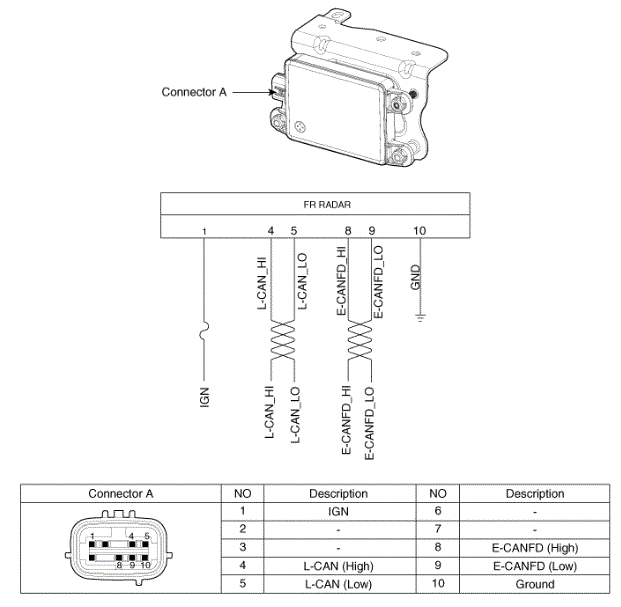

Home >> Genesis >> 2022 >> GV80 2.5T, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Drivers Assistance Systems - ADAS >> Front Radar System >> Front Radar Unit >> Schematic Diagrams >> Circuit Diagram
