Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "On".

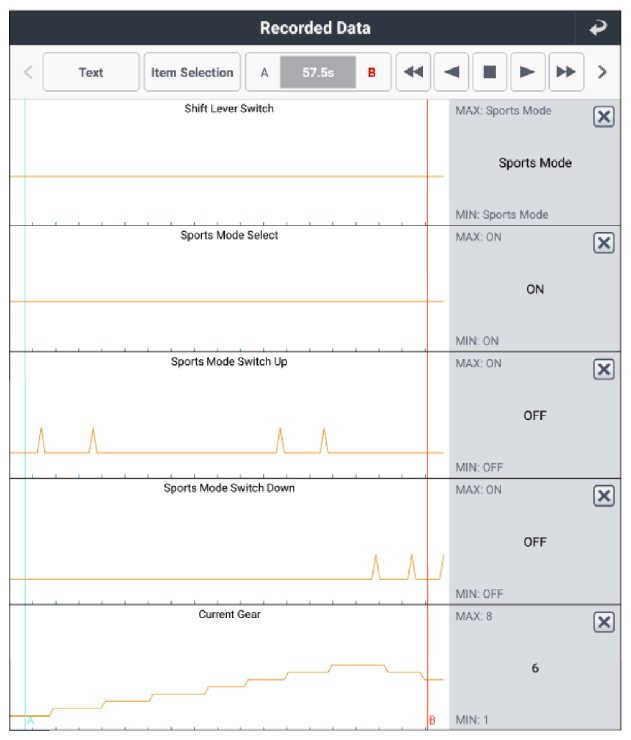

  3. Select and monitor from Current Data:
    1. Shift Lever Switch
    2. Sports Mode Select
    3. Sports Mode Switch "Up"
    4. Sports Mode Switch "Down"
    5. Current Gear
  4. Test Drive vehicle and monitor Middle Speed Sensor Data

    Specification:  Increasing Gradually

    G14737869Courtesy of HYUNDAI MOTOR AMERICA
