[GDI Injector]
WARNING: This page is about a different variant/trim than selected.
- When removing/reinstalling the injector, clean the cylinder head hole and the appearance.
(Removal of carbon deposits and foreign substances using a brush)

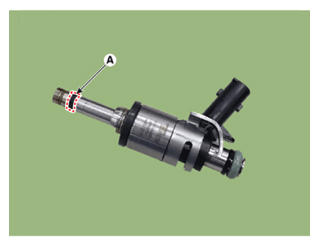

- Be careful not to apply oil/grease/lubricant to the injector tip seal (A).
- Do not use the dropped part.
- When inserting the injector, be careful not to damage the injector tip.

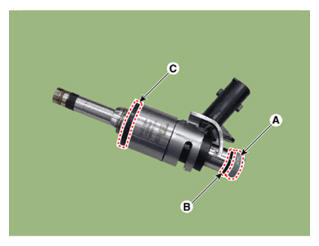

- Do not reuse the O-ring (A), support disk (B), rubber washer (C).
- Be careful not to apply oil to combustion seal.
