Home >> Genesis >> 2022 >> GV70 2.5T >> Repair and Diagnosis >> Suspension >> Suspension Control Systems >> Electronic Control Suspension (ECS) System >> Schematic Diagrams

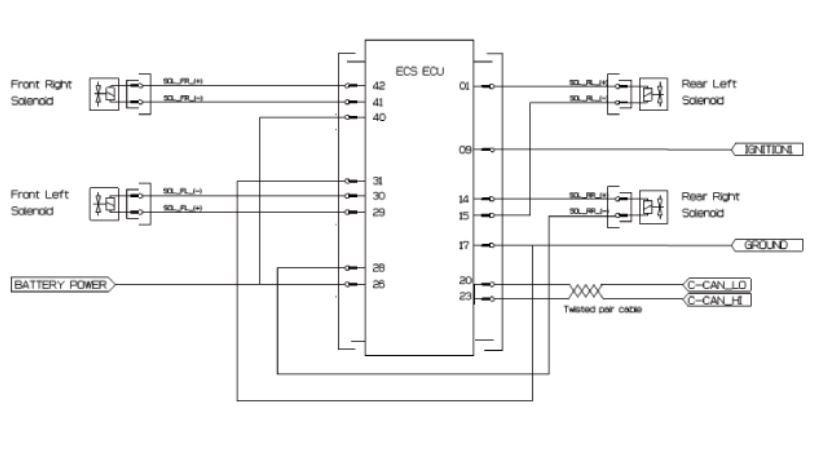

Schematic Diagrams

G14753628

Courtesy of HYUNDAI MOTOR AMERICA
