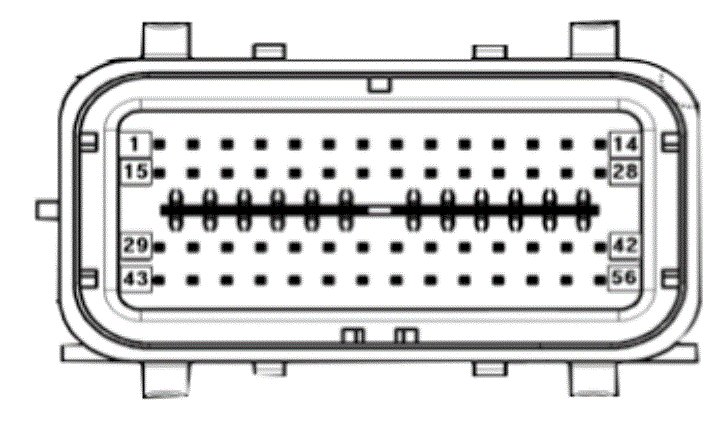

Connector End View And Terminal Description

Courtesy of HYUNDAI MOTOR AMERICA

Pin No	Description
1	Solenoid valve RL +
9	IGN1
14	Solenoid valve RR +
15	Solenoid valve RL -
17	Ground
20	CAN LOW
23	CAN HIGH
26	Sensor power
28	Solenoid valve RR -
29	Solenoid valve FL +
30	Solenoid valve FL -
31	Ground
