With Diagnostic tool

In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system.
The diagnostic system provides the following information.
1. Fault Code Searching: Checking failure and code number (DTC)
2. Data Analysis: Checking the system input/output data state
3. Actuation test: Checking the system operation condition
4. S/W Management: Controlling other features including system option setting and zero point adjustment

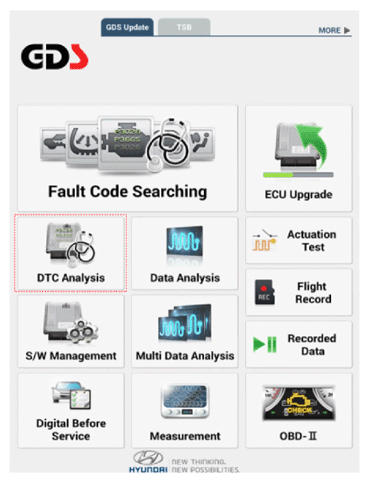

If diagnose the vehicle by diagnostic tool, select "DTC Analysis" and "Vehicle".

Courtesy of HYUNDAI MOTOR AMERICA

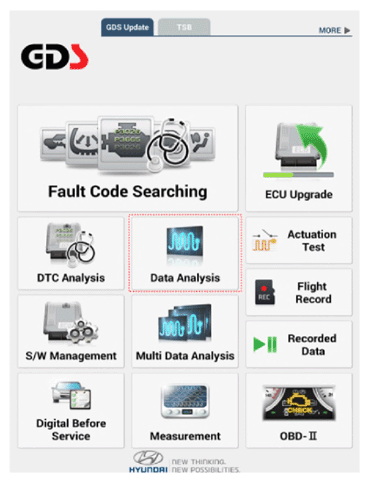

If check current status, select the "Data Analysis".

Courtesy of HYUNDAI MOTOR AMERICA

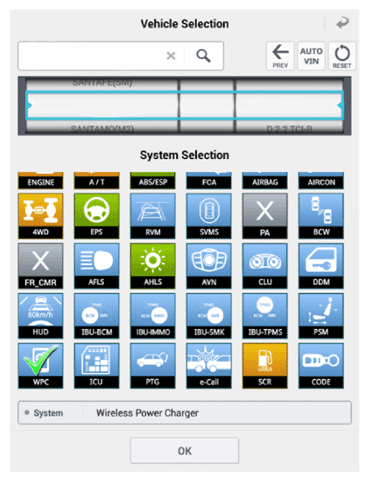

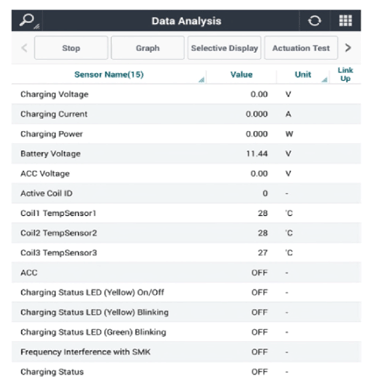

Select the 'WPC' to search the current state of the input/output data.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

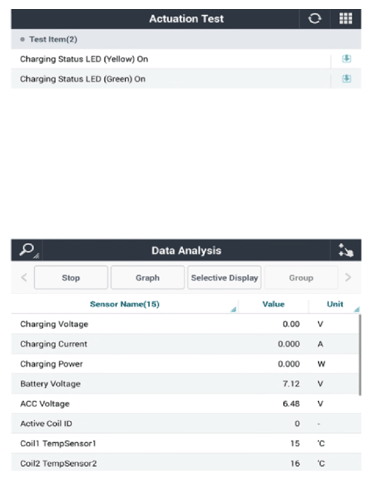

To forcibly actuate the input value of the module to be checked, select option 'Actuation Test'.

Courtesy of HYUNDAI MOTOR AMERICA
