Dynamic Damper: Removal

  1. Remove the front drive shaft. (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
  2. Remove the trans axle side joint. (Refer to Driveshaft Assembly - "JOINT ASSEMBLY (TRANSAXLE SIDE) ")

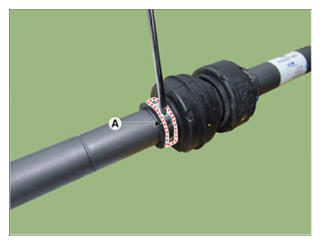

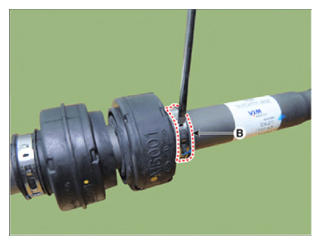

  3. Remove the dynamic damper band (A, B) using driver (-).
    G14764459Courtesy of HYUNDAI MOTOR AMERICA
    G14764460Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When removing the dynamic damper, lubricate the shaft with soapy water to prevent shaft damage.

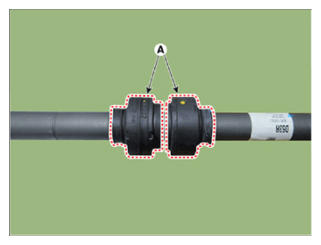

  4. Remove the dynamic damper (A).
    G14764461Courtesy of HYUNDAI MOTOR AMERICA
