Power Door Mirror Assembly: Inspection
- Disconnect the negative (-) battery terminal.
- Remove the door trim.
(Refer to Body - "FRONT DOOR TRIM ")

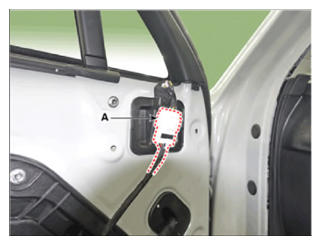

- Disconnect the power door mirror connector (A) from the harness.
Apply battery voltage to each terminal as shown in the illustration and verify that the mirror operates properly.
