Connector End View And Terminal Description

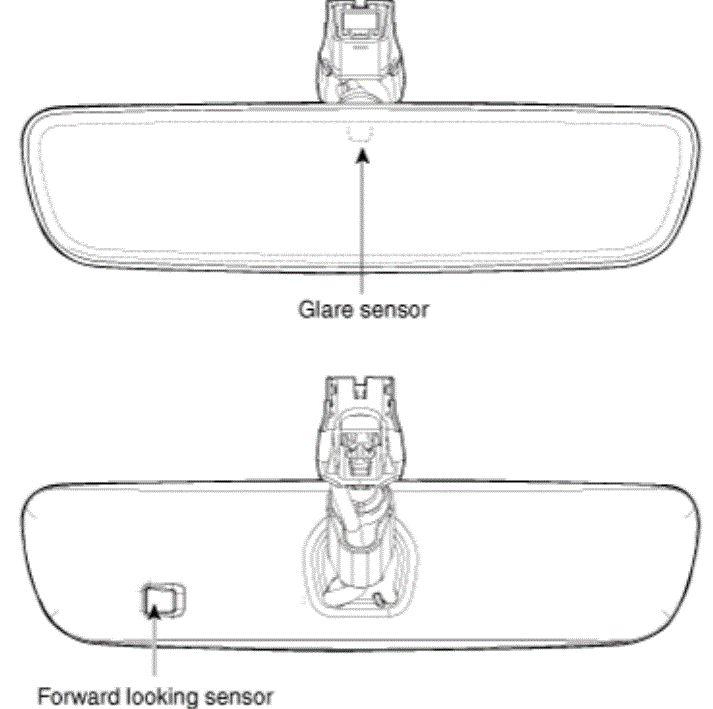

G14764833Courtesy of HYUNDAI MOTOR AMERICA
Connector No Description Pin Number Description
G14764834Courtesy of HYUNDAI MOTOR AMERICA
 1 - 6 IGN
2 - 7 Reverse inhibit
3 - 8 Ground
4 OEC (+) 9 OEC (-)
5 - 10 -
