Front Pillar Trim: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to bend or scratch the trim and panels.
- Remove the front pillar trim.
- To remove the front pillar trim, the fastener remover (A) below must be used.
- After slightly lifting up the front pillar trim and putting the tool in, remove the mounting clip (A) by pulling it.
Information
- Once the front pillar trim is removed, be sure to replace the clip (A) with new ones.

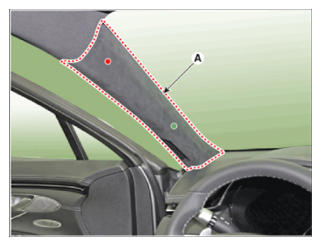

- Remove the front pillar trim (A).
Information
- To remove the front pillar trim, the fastener remover (A) below must be used.
- To install, reverse removal procedure.
