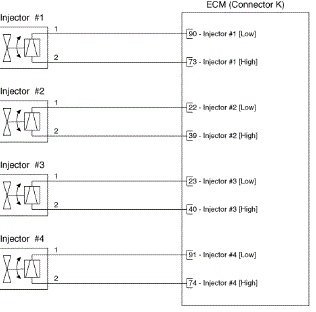

Home >> Genesis >> 2022 >> GV70 2.5T Select >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.5L >> Injector >> Schematic Diagrams >> Circuit Diagram >> GDI Injector
