Home >> Genesis >> 2022 >> GV70 2.5T Advanced >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Suspension System >> Front Strut Assembly >> Components & Components Location >> Components

Components & Components Location: Components

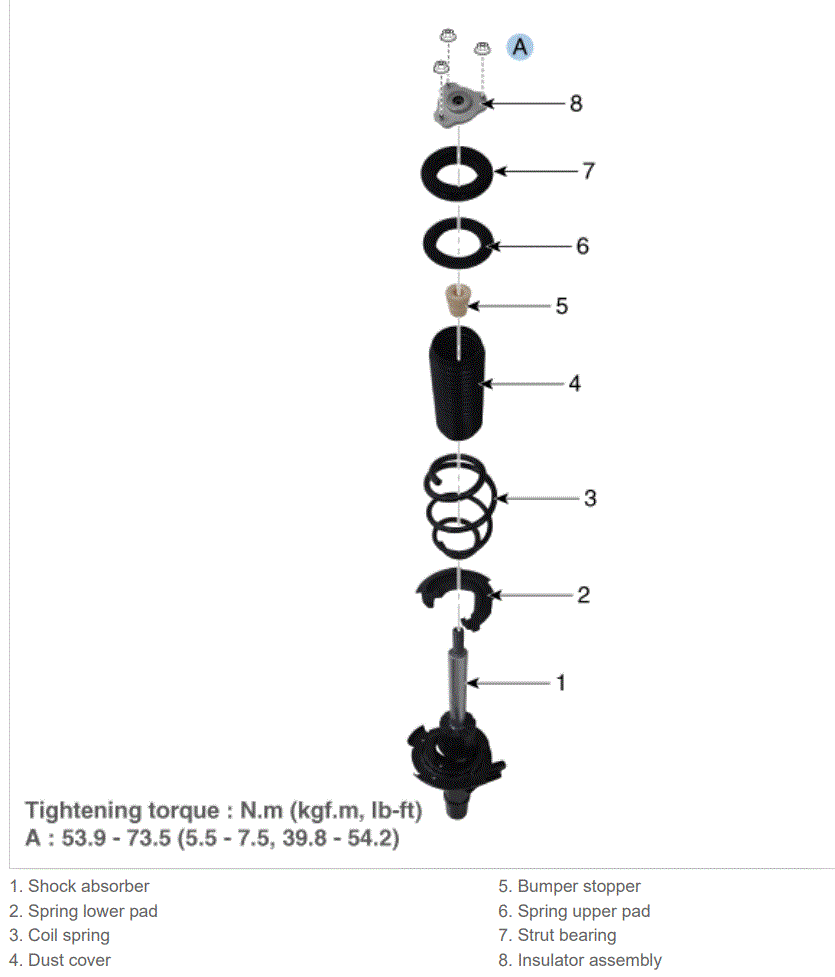

Fig 1: Front Strut Assembly Components Location With Torque Specification

G14753499

Courtesy of HYUNDAI MOTOR AMERICA
