Home >> Genesis >> 2022 >> GV70 2.5T Advanced >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Tailgate Module >> Power Tailgate Latch >> Removal & Installation >> Removal

Removal & Installation: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the liftgate trim.

    (Refer to Body - "LIFTGATE TRIM ")

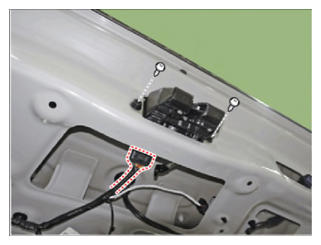

  3. Separate the connector, loosen the mounting screws and then remove the power liftgate latch.
    G14764750Courtesy of HYUNDAI MOTOR AMERICA
