Front Wireless Power Charging Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the floor console upper garnish.

    (Automatic Transmission System (SBC) - "Automatic Transmission Control System")

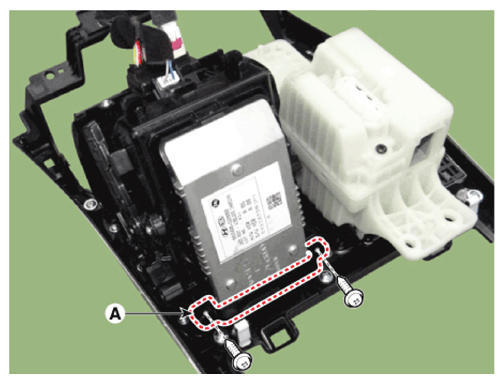

  4. Remove the wireless power charging unit mounting bracket (A) after loosening the screws.
    G14235961Courtesy of HYUNDAI MOTOR AMERICA

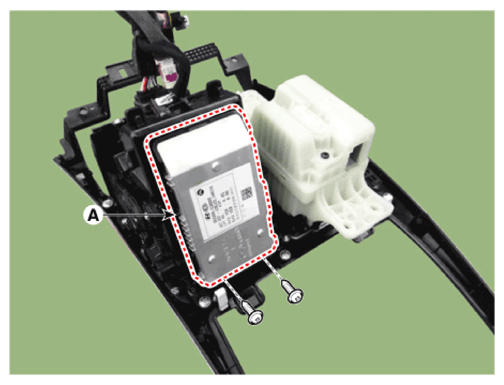

  5. Remove the wireless power charging unit (A) after loosening the screws.
G14235962Courtesy of HYUNDAI MOTOR AMERICA

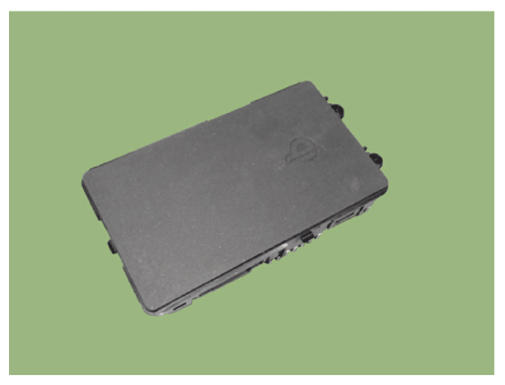

G14235963Courtesy of HYUNDAI MOTOR AMERICA
