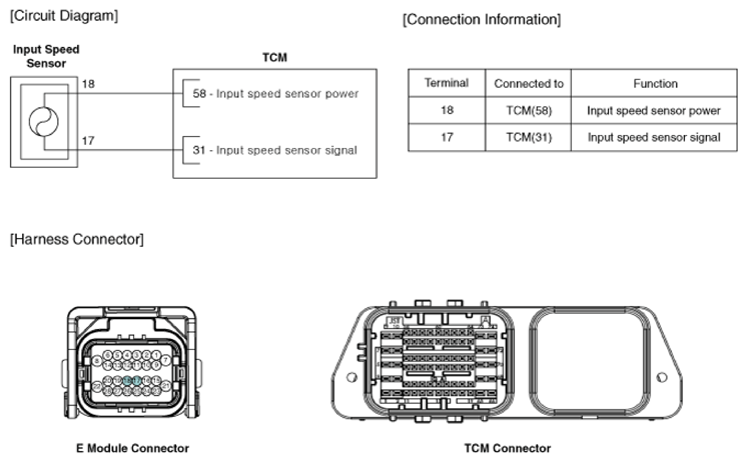

Home >> Genesis >> 2022 >> G90 3.3T Premium, AWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transmission Control System - 3.3L >> Input Speed Sensor >> Schematic Diagrams >> Circuit Diagram
