Terminal Function

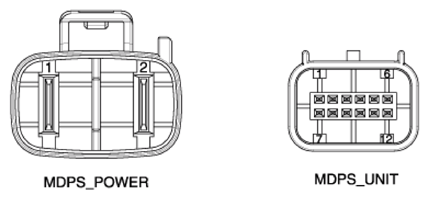

G14210114Courtesy of HYUNDAI MOTOR AMERICA
Type Pin No Description
Battery 1 Battery -
2 Battery +
Vehicle 1 -
2 -
3 -
4 -
5 -
6 -
7 Ignition
8 High_CAN
9 Low_CAN
10 -
11 -
12 -
